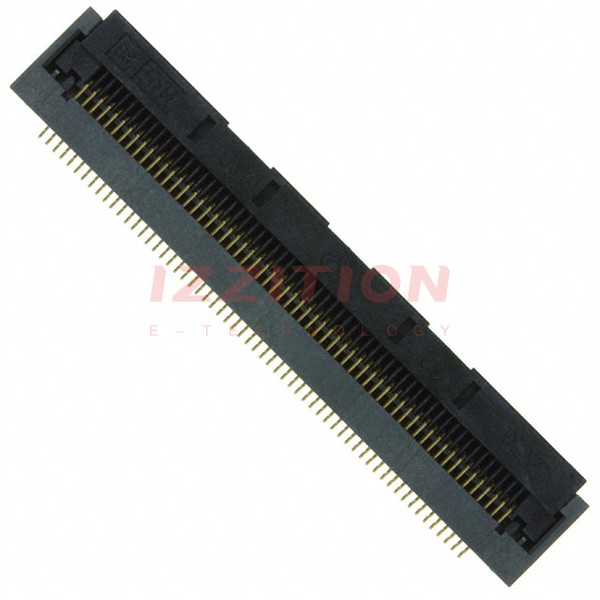

| Part Number | FH28-60S-0.5SH(48) | FH28-60S-0.5SH(98) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Flat Flex Type | FFC, FPC | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom | Contacts, Bottom |
| Number of Positions | 60 | 60 |
| Pitch | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Termination | Solder | Solder |
| FFC, FCB Thickness | 0.30mm | 0.30mm |
| Height Above Board | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Locking Feature | Rotary Lock | Rotary Lock |
| Cable End Type | Tabbed | Tabbed |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | - | Gold |
| Housing Material | - | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | - | Liquid Crystal Polymer (LCP), Halogen Free |
| Features | Solder Retention, Zero Insertion Force (ZIF) | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V | 50V |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Material Flammability Rating | - | UL94 V-0 |
