Hirose Electric Co Ltd FH26-57S-0.3SHW(10)

Manufacturer No:
FH26-57S-0.3SHW(10)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
FH26-57S-0.3SHW(10) Datasheet
ECAD Model:
-
Description:

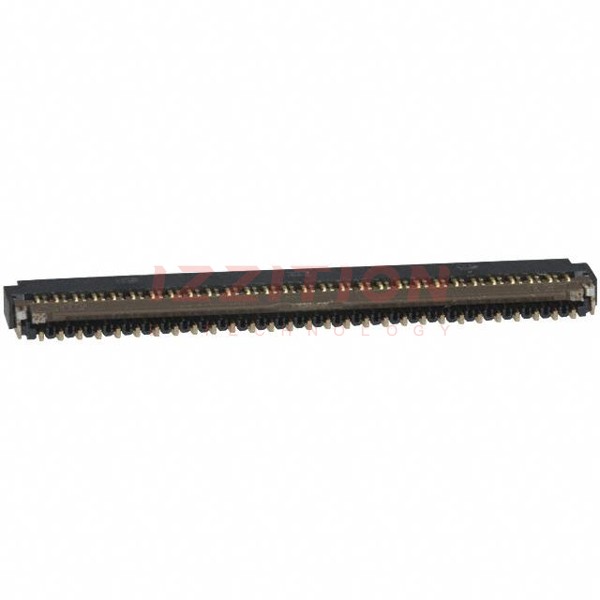

CONN FPC BOTTOM 57POS 0.30MM R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:57
Pitch:0.012" (0.30mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.039" (1.00mm)
Locking Feature:Flip Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:Polyamide (PA), Nylon
Features:Zero Insertion Force (ZIF)
Voltage Rating:30V
Operating Temperature:-55°C ~ 85°C
Material Flammability Rating:UL94 V-0
