FH21-28S-1DS
  • Share:

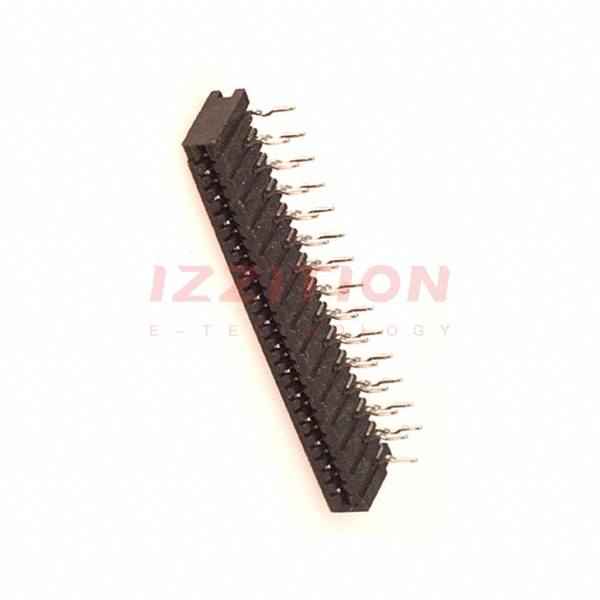

Hirose Electric Co Ltd FH21-28S-1DS

Manufacturer No:
FH21-28S-1DS
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
FH21-28S-1DS Datasheet
ECAD Model:
-
Description:
CONN FFC FPC 28POS 1.00MM R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FFC, FPC
Mounting Type:Through Hole, Right Angle
Connector/Contact Type:Contacts, Top and Bottom
Number of Positions:28
Pitch:0.039" (1.00mm)
Termination:Kinked Pin
FFC, FCB Thickness:0.30mm
Height Above Board:0.106" (2.70mm)
Locking Feature:-
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Solder Plating
Housing Material:Polybutylene Terephthalate (PBT)
Actuator Material:-
Features:Low Insertion Force (LIF)
Voltage Rating:50V
Operating Temperature:-30°C ~ 70°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

-
483

Please send RFQ , we will respond immediately.

Similar Products

Part Number FH21-28S-1DS FH21-8S-1DS   FH21-28S-1DSA   FH21-18S-1DS   FH21-20S-1DS   FH21-22S-1DS   FH21-24S-1DS   FH21-26S-1DS
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Flat Flex Type FFC, FPC FFC, FPC FFC, FPC FFC, FPC FFC, FPC FFC, FPC FFC, FPC FFC, FPC
Mounting Type Through Hole, Right Angle Through Hole, Right Angle Through Hole Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle
Connector/Contact Type Contacts, Top and Bottom Contacts, Top and Bottom Contacts, Vertical - 2 Sided Contacts, Top and Bottom Contacts, Top and Bottom Contacts, Top and Bottom Contacts, Top and Bottom Contacts, Top and Bottom
Number of Positions 28 8 28 18 20 22 24 26
Pitch 0.039" (1.00mm) 0.039" (1.00mm) 0.039" (1.00mm) 0.039" (1.00mm) 0.039" (1.00mm) 0.039" (1.00mm) 0.039" (1.00mm) 0.039" (1.00mm)
Termination Kinked Pin Kinked Pin Kinked Pin Kinked Pin Kinked Pin Kinked Pin Kinked Pin Kinked Pin
FFC, FCB Thickness 0.30mm 0.30mm 0.30mm 0.30mm 0.30mm 0.30mm 0.30mm 0.30mm
Height Above Board 0.106" (2.70mm) 0.106" (2.70mm) 0.228" (5.80mm) 0.106" (2.70mm) 0.106" (2.70mm) 0.106" (2.70mm) 0.106" (2.70mm) 0.106" (2.70mm)
Locking Feature - - - - - - - -
Cable End Type Straight Straight Straight Straight Straight Straight Straight Straight
Contact Material Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze
Contact Finish Solder Plating Solder Plating Solder Plating Solder Plating Solder Plating Solder Plating Solder Plating Solder Plating
Housing Material Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT)
Actuator Material - - - - - - - -
Features Low Insertion Force (LIF) Low Insertion Force (LIF) Low Insertion Force (LIF) Low Insertion Force (LIF) Low Insertion Force (LIF) Low Insertion Force (LIF) Low Insertion Force (LIF) Low Insertion Force (LIF)
Voltage Rating 50V 50V 50V 50V 50V 50V 50V 50V
Operating Temperature -30°C ~ 70°C -30°C ~ 70°C -30°C ~ 70°C -30°C ~ 70°C -30°C ~ 70°C -30°C ~ 70°C -30°C ~ 70°C -30°C ~ 70°C
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
