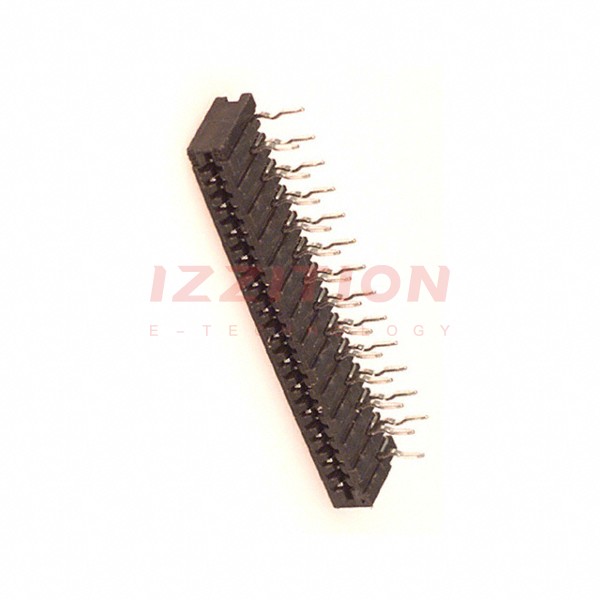

| Part Number | FH21-26S-1DS | FH21-6S-1DS | FH21-28S-1DS | FH21-26S-1DSA | FH21-16S-1DS | FH21-20S-1DS | FH21-22S-1DS | FH21-24S-1DS |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Flat Flex Type | FFC, FPC | FFC, FPC | FFC, FPC | FFC, FPC | FFC, FPC | FFC, FPC | FFC, FPC | FFC, FPC |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Connector/Contact Type | Contacts, Top and Bottom | Contacts, Top and Bottom | Contacts, Top and Bottom | Contacts, Vertical - 2 Sided | Contacts, Top and Bottom | Contacts, Top and Bottom | Contacts, Top and Bottom | Contacts, Top and Bottom |
| Number of Positions | 26 | 6 | 28 | 26 | 16 | 20 | 22 | 24 |
| Pitch | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Termination | Kinked Pin | Kinked Pin | Kinked Pin | Kinked Pin | Kinked Pin | Kinked Pin | Kinked Pin | Kinked Pin |
| FFC, FCB Thickness | 0.30mm | 0.30mm | 0.30mm | 0.30mm | 0.30mm | 0.30mm | 0.30mm | 0.30mm |
| Height Above Board | 0.106" (2.70mm) | 0.106" (2.70mm) | 0.106" (2.70mm) | 0.228" (5.80mm) | 0.106" (2.70mm) | 0.106" (2.70mm) | 0.106" (2.70mm) | 0.106" (2.70mm) |
| Locking Feature | - | - | - | - | - | - | - | - |
| Cable End Type | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Solder Plating | Solder Plating | Solder Plating | Solder Plating | Solder Plating | Solder Plating | Solder Plating | Solder Plating |
| Housing Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Actuator Material | - | - | - | - | - | - | - | - |
| Features | Low Insertion Force (LIF) | Low Insertion Force (LIF) | Low Insertion Force (LIF) | Low Insertion Force (LIF) | Low Insertion Force (LIF) | Low Insertion Force (LIF) | Low Insertion Force (LIF) | Low Insertion Force (LIF) |
| Voltage Rating | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V |
| Operating Temperature | -30°C ~ 70°C | -30°C ~ 70°C | -30°C ~ 70°C | -30°C ~ 70°C | -30°C ~ 70°C | -30°C ~ 70°C | -30°C ~ 70°C | -30°C ~ 70°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
