FH19SC-40S-0.5SH(09)
  • Share:

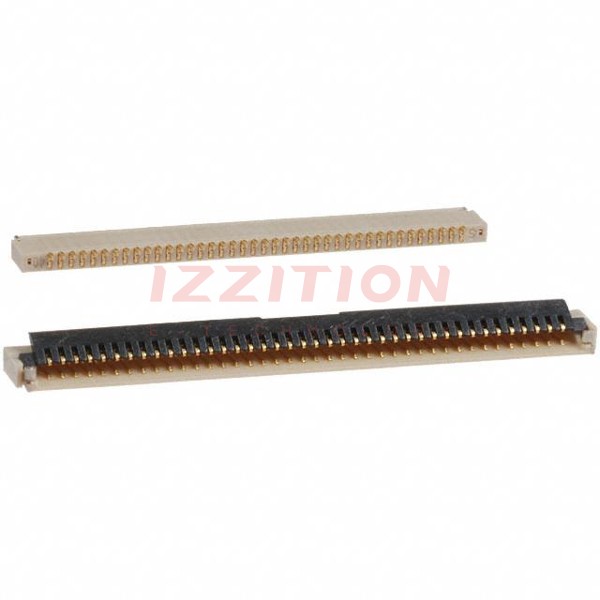

Hirose Electric Co Ltd FH19SC-40S-0.5SH(09)

Manufacturer No:
FH19SC-40S-0.5SH(09)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
FH19SC-40S-0.5SH(09) Datasheet
ECAD Model:
-
Description:
CONN FFC BOTTOM 40POS 0.50MM R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:40
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.037" (0.95mm)
Locking Feature:Flip Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-55°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

-
377

Please send RFQ , we will respond immediately.

Similar Products

Part Number FH19SC-40S-0.5SH(09) FH19SC-45S-0.5SH(09)   FH19SC-4S-0.5SH(09)   FH19SC-50S-0.5SH(09)   FH19SC-10S-0.5SH(09)   FH19SC-20S-0.5SH(09)   FH19SC-30S-0.5SH(09)   FH19SC-40S-0.5SH(05)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Active Active Obsolete
Flat Flex Type FFC, FPC FFC, FPC FFC, FPC FFC, FPC FFC, FPC FFC, FPC FFC, FPC FFC, FPC
Mounting Type Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom Contacts, Bottom Contacts, Bottom Contacts, Bottom Contacts, Bottom Contacts, Bottom Contacts, Bottom Contacts, Bottom
Number of Positions 40 45 4 50 10 20 30 40
Pitch 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm)
Termination Solder Solder Solder Solder Solder Solder Solder Solder
FFC, FCB Thickness 0.30mm 0.30mm 0.30mm 0.30mm 0.30mm 0.30mm 0.30mm 0.30mm
Height Above Board 0.037" (0.95mm) 0.037" (0.95mm) 0.037" (0.95mm) 0.037" (0.95mm) 0.037" (0.95mm) 0.037" (0.95mm) 0.037" (0.95mm) 0.037" (0.95mm)
Locking Feature Flip Lock Flip Lock Flip Lock Flip Lock Flip Lock Flip Lock Flip Lock Flip Lock
Cable End Type Tapered Tapered Tapered Tapered Tapered Tapered Tapered Tapered
Contact Material Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze
Contact Finish Gold Gold Gold Gold Gold Gold Gold Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free Liquid Crystal Polymer (LCP), Halogen Free Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP), Halogen Free Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP), Halogen Free Liquid Crystal Polymer (LCP), Halogen Free Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF) Solder Retention, Zero Insertion Force (ZIF) Solder Retention, Zero Insertion Force (ZIF) Solder Retention, Zero Insertion Force (ZIF) Solder Retention, Zero Insertion Force (ZIF) Solder Retention, Zero Insertion Force (ZIF) Solder Retention, Zero Insertion Force (ZIF) Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V 50V 50V 50V 50V 50V 50V 50V
Operating Temperature -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
