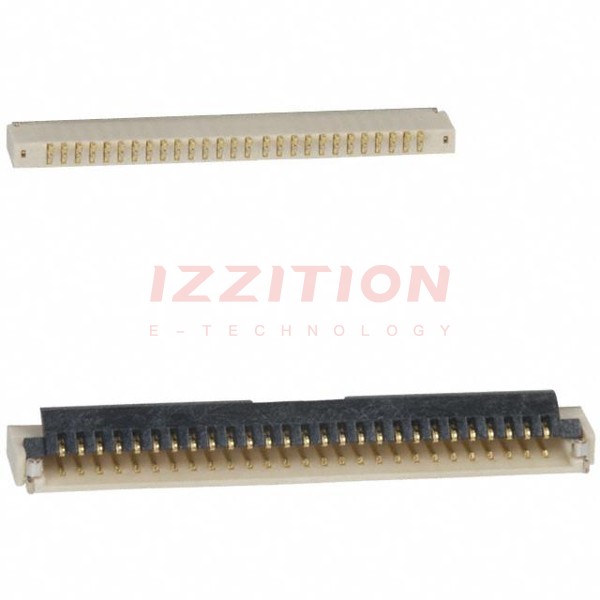

| Part Number | FH19SC-27S-0.5SH(10) | FH19C-27S-0.5SH(10) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Last Time Buy | Obsolete |
| Flat Flex Type | FFC, FPC | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom | Contacts, Bottom |
| Number of Positions | 27 | 27 |
| Pitch | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Termination | Solder | Solder |
| FFC, FCB Thickness | 0.30mm | 0.20mm |
| Height Above Board | 0.037" (0.95mm) | 0.035" (0.88mm) |
| Locking Feature | Flip Lock | Flip Lock |
| Cable End Type | Tapered | Tapered |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) | Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) |
| Features | Solder Retention, Zero Insertion Force (ZIF) | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V | 50V |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
