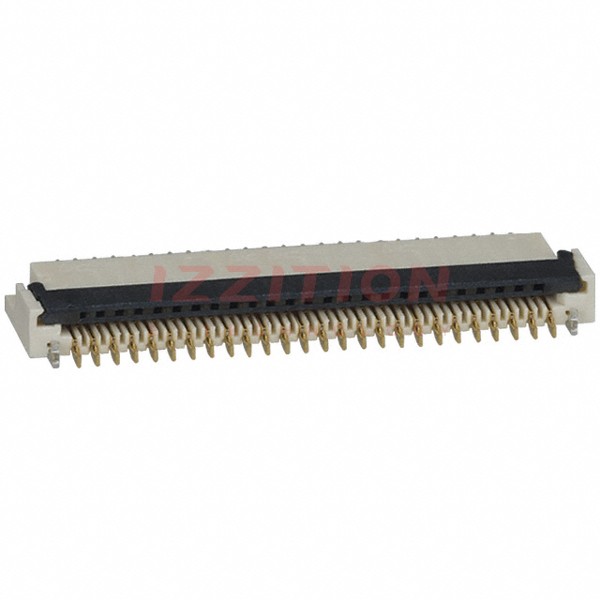

| Part Number | FH18-51S-0.3SHW(55) | FH18-21S-0.3SHW(55) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete |
| Flat Flex Type | FPC | FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom | Contacts, Bottom |
| Number of Positions | 51 | 21 |
| Pitch | 0.012" (0.30mm) | 0.012" (0.30mm) |
| Termination | Solder | Solder |
| FFC, FCB Thickness | 0.20mm | 0.20mm |
| Height Above Board | 0.071" (1.80mm) | 0.071" (1.80mm) |
| Locking Feature | Flip Lock | Flip Lock |
| Cable End Type | Tapered | Tapered |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Actuator Material | - | - |
| Features | Low Insertion Force (LIF), Zero Insertion Force (ZIF) | Low Insertion Force (LIF), Zero Insertion Force (ZIF) |
| Voltage Rating | 30V | 30V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
