FH12-50S-0.5SH(54)
  • Share:

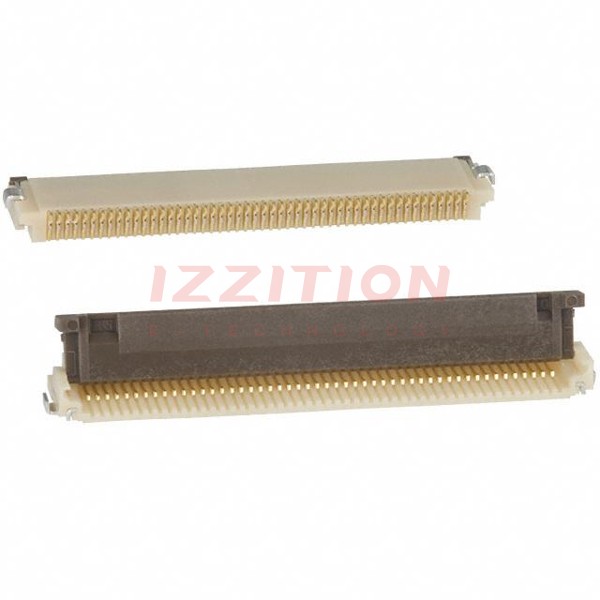

Hirose Electric Co Ltd FH12-50S-0.5SH(54)

Manufacturer No:
FH12-50S-0.5SH(54)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
FH12-50S-0.5SH(54) Datasheet
ECAD Model:
-
Description:
CONN FFC BOTTOM 50POS 0.50MM R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:50
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.079" (2.00mm)
Locking Feature:Flip Lock
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Polyamide (PA), Nylon
Actuator Material:Polyphenylene Sulfide (PPS)
Features:Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

$2.64
33

Please send RFQ , we will respond immediately.

Similar Products

Part Number FH12-50S-0.5SH(54) FH12-50S-0.5SH(55)   FH12-30S-0.5SH(54)   FH12-40S-0.5SH(54)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Last Time Buy Last Time Buy
Flat Flex Type FFC, FPC FFC, FPC FFC, FPC FFC, FPC
Mounting Type Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom Contacts, Bottom Contacts, Bottom Contacts, Bottom
Number of Positions 50 50 30 40
Pitch 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm)
Termination Solder Solder Solder Solder
FFC, FCB Thickness 0.30mm 0.30mm 0.30mm 0.30mm
Height Above Board 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm)
Locking Feature Flip Lock Flip Lock Flip Lock Flip Lock
Cable End Type Straight Straight Straight Straight
Contact Material Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze
Contact Finish Gold Gold Gold Gold
Housing Material Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS) Polyphenylene Sulfide (PPS) Polyphenylene Sulfide (PPS) Polyphenylene Sulfide (PPS)
Features Zero Insertion Force (ZIF) Zero Insertion Force (ZIF) Zero Insertion Force (ZIF) Zero Insertion Force (ZIF)
Voltage Rating 50V 50V 50V 50V
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
