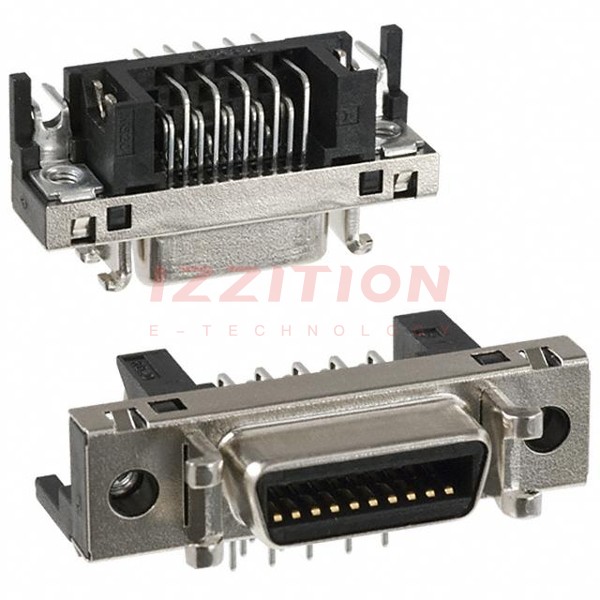

| Part Number | DX10GM-20SE(50) | DX10HM-20SE(50) | DX10M-20SE(50) | DX10GM-20S(50) |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Last Time Buy |
| Connector Style | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle |
| Number of Positions | 20 | 20 | 20 | 20 |
| Number of Rows | 2 | 2 | 2 | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder |
| Flange Feature | Housing/Shell (M2.6) | Housing/Shell (M2.6) | Mating Side (M2.6); Latchblocks | Housing/Shell (M2.6) |
| Type | Miniature High Density (HD) | Miniature High Density (HD) | Miniature High Density (HD) | Miniature High Density (HD) |
| Features | Board Lock | Board Lock | Board Lock | - |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | - | 1.18µin (0.030µm) | 11.8µin (0.30µm) | - |
