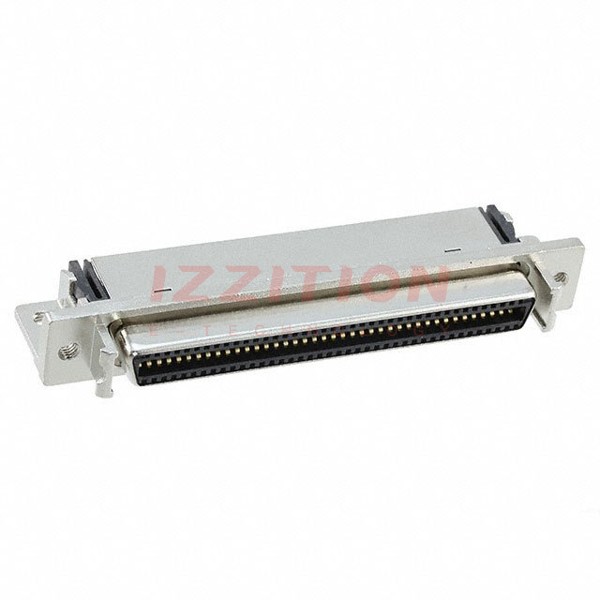

| Part Number | DX10-80S(50) | DX20-80S(50) | DX10A-80S(50) | DX10-20S(50) | DX10-50S(50) |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Active |
| Connector Style | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Number of Positions | 80 | 80 | 80 | 20 | 50 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Flange Feature | Housing/Shell (M2.6); Latchblocks | Housing/Shell (M2.6); Latchblocks | Mating Side, Female Screwlock (M2.6) | Housing/Shell (M2.6); Latchblocks | Housing/Shell (M2.6); Latchblocks |
| Type | Miniature High Density (HD) | Miniature High Density (HD) | Miniature High Density (HD) | Miniature High Density (HD) | Miniature High Density (HD) |
| Features | - | - | - | - | - |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 7.87µin (0.200µm) | 7.87µin (0.200µm) | 7.87µin (0.200µm) | 7.87µin (0.200µm) | 7.87µin (0.200µm) |
