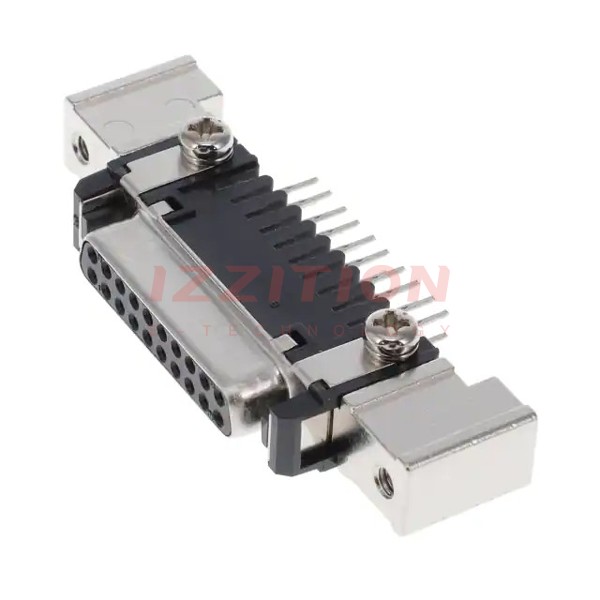

| Part Number | DN20B-20S(70) | DN20B-50S(70) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Style | D-Type | D-Type |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 20 | 50 |
| Number of Rows | 2 | 2 |
| Mounting Type | Through Hole | Through Hole |
| Shell Size, Connector Layout | 0.100 Pitch x 0.100 Row to Row | 0.100 Pitch x 0.100 Row to Row |
| Contact Type | Signal | Signal |
| Flange Feature | Housing/Shell (M3); Latchblocks | Housing/Shell (M3); Latchblocks |
| Termination | Solder | Solder |
| Primary Material | Metal | Metal |
| Shell Material, Finish | Aluminum, Nickel Plated | Aluminum, Nickel Plated |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 11.8µin (0.30µm) | 11.8µin (0.30µm) |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 3A | 3A |
| Backset Spacing | - | - |
| Features | - | - |
