Please send RFQ , we will respond immediately.

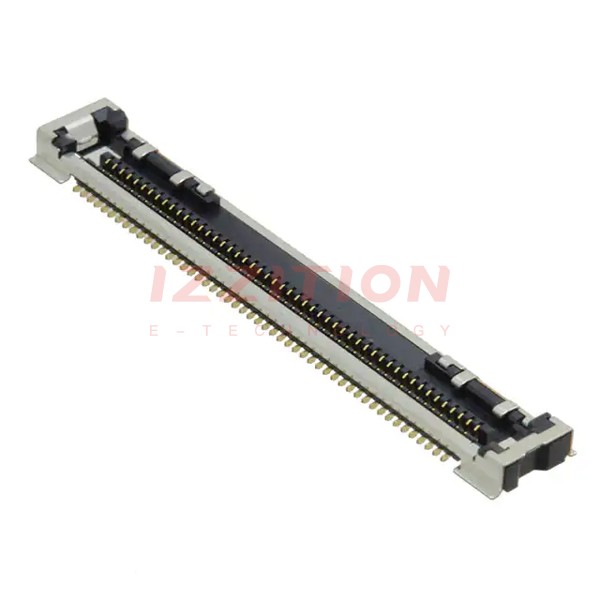

| Part Number | DF80-50S-0.5V(52) | DF80-30S-0.5V(52) | DF80-40S-0.5V(52) | DF80-50S-0.5V(51) |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Center Strip Contact | Center Strip Contact | Center Strip Contact | Center Strip Contact |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Number of Positions | 50 | 30 | 40 | 50 |
| Number of Positions Loaded | All | All | All | All |
| Pitch - Mating | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Number of Rows | 1 | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination | Solder | Solder | Solder | Solder |
| Fastening Type | Friction Lock | Friction Lock | Friction Lock | Friction Lock |
| Contact Finish - Mating | Gold | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | 1.97µin (0.050µm) | 1.97µin (0.050µm) | 1.97µin (0.050µm) | 1.97µin (0.050µm) |
| Insulation Color | Black | Black | Black | Black |
| Insulation Height | 0.065" (1.65mm) | 0.065" (1.65mm) | 0.065" (1.65mm) | 0.065" (1.65mm) |
| Contact Length - Post | - | - | - | - |
| Operating Temperature | -35°C ~ 85°C | -35°C ~ 85°C | -35°C ~ 85°C | -35°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Gold | Gold | Gold | Gold |
| Mated Stacking Heights | - | - | - | - |
| Ingress Protection | - | - | - | - |
| Features | Solder Retention | Solder Retention | Solder Retention | Solder Retention |
| Current Rating (Amps) | 0.5A | 0.5A | 0.5A | 0.5A |
| Voltage Rating | 50V | 50V | 50V | 50V |
