Please send RFQ , we will respond immediately.

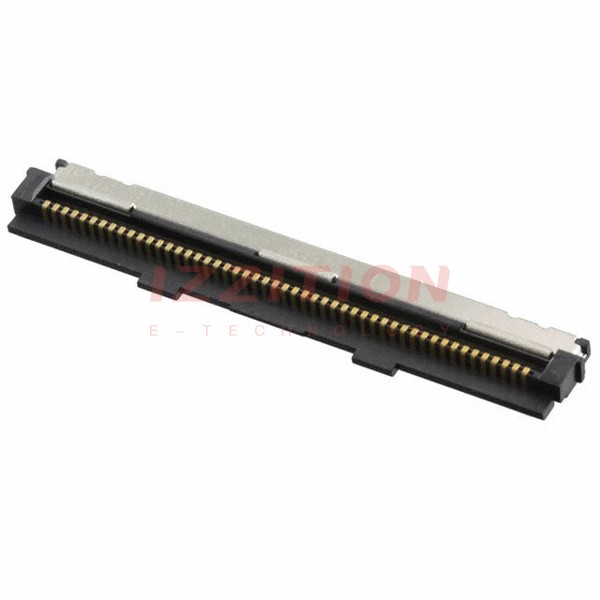

| Part Number | DF80-50P-0.5SD(52) | DF80-30P-0.5SD(52) | DF80-40P-0.5SD(52) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Type | Plug | Plug | Plug |
| Contact Type | Outer Shroud Contact | Outer Shroud Contact | Outer Shroud Contact |
| Number of Positions | 50 | 30 | 40 |
| Pitch | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Number of Rows | 1 | 1 | 1 |
| Row Spacing | - | - | - |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock |
| Cable Termination | Solder | Solder | Solder |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
| Wire Gauge | 32-36 AWG, 40-46 AWG | 32-36 AWG, 40-46 AWG | 32-36 AWG, 40-46 AWG |
| Features | Closed End | Closed End | Closed End |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 1.97µin (0.050µm) | - | - |
| Color | Black | Black | Black |
