DF65-6P-1.7V(21)
  • Share:

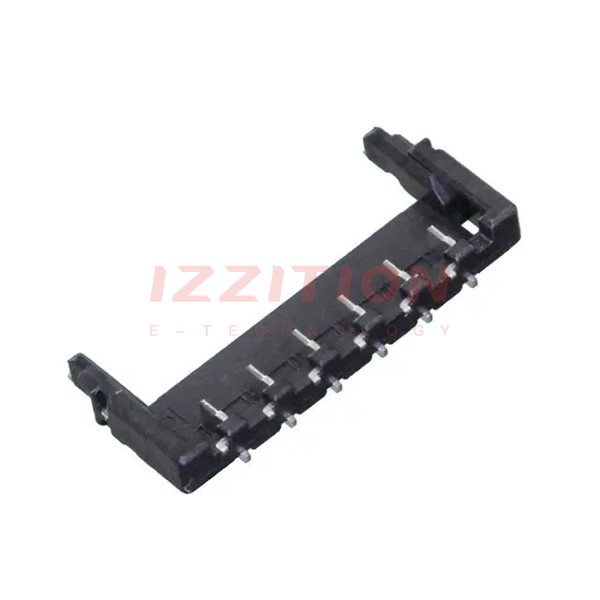

Hirose Electric Co Ltd DF65-6P-1.7V(21)

Manufacturer No:
DF65-6P-1.7V(21)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
DF65-6P-1.7V(21) Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 6POS 1.7MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.067" (1.70mm)
Number of Positions:6
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 3 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.065" (1.65mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Solder Retention
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$0.96
789

Please send RFQ , we will respond immediately.

Similar Products

Part Number DF65-6P-1.7V(21) DF65-7P-1.7V(21)   DF65-3P-1.7V(21)   DF65-4P-1.7V(21)   DF65-5P-1.7V(21)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Active Active Active
Connector Type Header Header Header Header Header
Contact Type Male Blade Male Blade Male Blade Male Blade Male Blade
Pitch - Mating 0.067" (1.70mm) 0.067" (1.70mm) 0.067" (1.70mm) 0.067" (1.70mm) 0.067" (1.70mm)
Number of Positions 6 7 3 4 5
Number of Rows 1 1 1 1 1
Row Spacing - Mating - - - - -
Number of Positions Loaded All All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 3 Wall Shrouded - 3 Wall Shrouded - 3 Wall Shrouded - 3 Wall Shrouded - 3 Wall
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Termination Solder Solder Solder Solder Solder
Fastening Type Latch Lock Latch Lock Latch Lock Latch Lock Latch Lock
Contact Length - Mating - - - - -
Contact Length - Post - - - - -
Overall Contact Length - - - - -
Insulation Height 0.065" (1.65mm) 0.065" (1.65mm) 0.065" (1.65mm) 0.065" (1.65mm) 0.065" (1.65mm)
Contact Shape Rectangular Rectangular Rectangular Rectangular Rectangular
Contact Finish - Mating Tin Tin Tin Tin Tin
Contact Finish Thickness - Mating - - - - -
Contact Finish - Post Tin Tin Tin Tin Tin
Contact Material Brass Brass Brass Brass Brass
Insulation Material Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP)
Features Solder Retention Solder Retention Solder Retention Solder Retention Solder Retention
Operating Temperature -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C
Ingress Protection - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Black Black Black Black Black
Current Rating (Amps) - - - - -
Voltage Rating - - - - -
