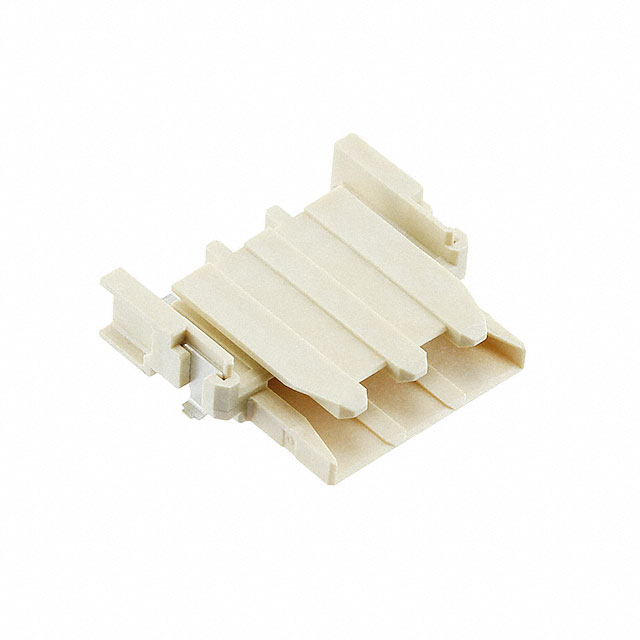

| Part Number | DF64-3S-4.5H(21) | DF64-2S-4.5H(21) | DF64-3P-4.5H(21) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Last Time Buy | Last Time Buy | Last Time Buy |
| Style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable |
| Connector Type | Receptacle, Non-Gendered | Receptacle, Non-Gendered | Plug, Non-Gendered |
| Number of Positions | 3 | 2 | 3 |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Termination | Solder | Solder | Solder |
| Pitch | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) |
| Fastening Type | Latch Holder | Latch Holder | Latch Holder |
| Features | Solder Retention | Solder Retention | Solder Retention |
| Housing Color | Beige | Beige | Beige |
| Wire Gauge | - | - | - |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Tin | Tin | Tin |
| Housing Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
