DF61-2P-2.2V(22)
  • Share:

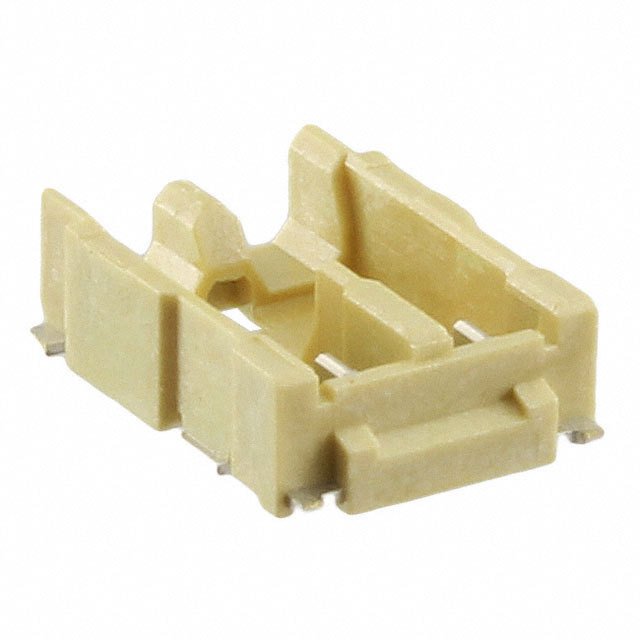

Hirose Electric Co Ltd DF61-2P-2.2V(22)

Manufacturer No:
DF61-2P-2.2V(22)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
DF61-2P-2.2V(22) Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 2POS 2.2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.087" (2.20mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 3 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Swing Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.086" (2.18mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Solder Retention
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Yellow
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$0.75
1,281

Please send RFQ , we will respond immediately.

Similar Products

Part Number DF61-2P-2.2V(22) DF61-2P-2.2V(23)   DF61-2P-2.2V(21)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Active
Connector Type Header Header Header
Contact Type Male Blade Male Blade Male Blade
Pitch - Mating 0.087" (2.20mm) 0.087" (2.20mm) 0.087" (2.20mm)
Number of Positions 2 2 2
Number of Rows 1 1 1
Row Spacing - Mating - - -
Number of Positions Loaded All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 3 Wall Shrouded - 3 Wall Shrouded - 3 Wall
Mounting Type Surface Mount Surface Mount Surface Mount
Termination Solder Solder Solder
Fastening Type Swing Lock Swing Lock Swing Lock
Contact Length - Mating - - -
Contact Length - Post - - -
Overall Contact Length - - -
Insulation Height 0.086" (2.18mm) 0.086" (2.18mm) 0.086" (2.18mm)
Contact Shape Rectangular Rectangular Rectangular
Contact Finish - Mating Tin Tin Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm) 39.4µin (1.00µm) 39.4µin (1.00µm)
Contact Finish - Post Tin Tin Tin
Contact Material Brass Brass Brass
Insulation Material Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP)
Features Solder Retention Solder Retention Solder Retention
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C
Ingress Protection - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Yellow Beige Red
Current Rating (Amps) - - -
Voltage Rating - - -
