DF60-6P-10.16DSA(27)
  • Share:

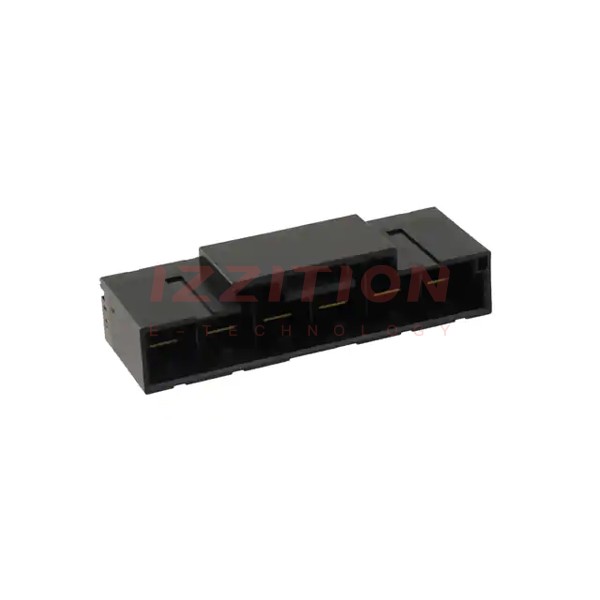

Hirose Electric Co Ltd DF60-6P-10.16DSA(27)

Manufacturer No:
DF60-6P-10.16DSA(27)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
DF60-6P-10.16DSA(27) Datasheet
ECAD Model:
-
Description:
CONN HDR 6POS 10.16MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.400" (10.16mm)
Number of Positions:6
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.150" (3.81mm)
Overall Contact Length:-
Insulation Height:0.846" (21.50mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:Gold
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Board Guide
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:1000VAC/DC
0 Remaining View Similar

In Stock

$5.70
164

Please send RFQ , we will respond immediately.

Similar Products

Part Number DF60-6P-10.16DSA(27) DF60-1P-10.16DSA(27)   DF60-2P-10.16DSA(27)   DF60-3P-10.16DSA(27)   DF60-4P-10.16DSA(27)   DF60-5P-10.16DSA(27)   DF60-6P-10.16DS(27)   DF60-6P-10.16DSA(26)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Active Active Active Active Active Last Time Buy
Connector Type Header Header Header Header Header Header Header Header
Contact Type Male Blade Male Blade Male Blade Male Blade Male Blade Male Blade Male Blade Male Blade
Pitch - Mating 0.400" (10.16mm) - 0.400" (10.16mm) 0.400" (10.16mm) 0.400" (10.16mm) 0.400" (10.16mm) 0.400" (10.16mm) 0.400" (10.16mm)
Number of Positions 6 1 2 3 4 5 6 6
Number of Rows 1 1 1 1 1 1 1 1
Row Spacing - Mating - - - - - - - -
Number of Positions Loaded All All All All All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole, Right Angle Through Hole
Termination Solder Solder Solder Solder Solder Solder Solder Solder
Fastening Type Latch Holder Latch Holder Latch Holder Latch Holder Latch Holder Latch Holder Latch Holder Latch Holder
Contact Length - Mating - - - - - - - -
Contact Length - Post 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm)
Overall Contact Length - - - - - - - -
Insulation Height 0.846" (21.50mm) 0.846" (21.50mm) 0.846" (21.50mm) 0.846" (21.50mm) 0.846" (21.50mm) 0.846" (21.50mm) 0.683" (17.35mm) 0.846" (21.50mm)
Contact Shape Rectangular Rectangular Rectangular Rectangular Rectangular Rectangular Rectangular Rectangular
Contact Finish - Mating Gold Gold Gold Gold Gold Gold Gold Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm)
Contact Finish - Post Gold Gold Gold Gold Gold Gold Gold -
Contact Material Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Liquid Crystal Polymer (LCP), Glass Filled
Features Board Guide Board Guide Board Guide Board Guide Board Guide Board Guide Board Lock Board Guide
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C
Ingress Protection - - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Black Black Black Black Black Black Black Black
Current Rating (Amps) Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge
Voltage Rating 1000VAC/DC 1000VAC/DC 1000VAC/DC 1000VAC/DC 1000VAC/DC 1000VAC/DC 1000VAC/DC -
