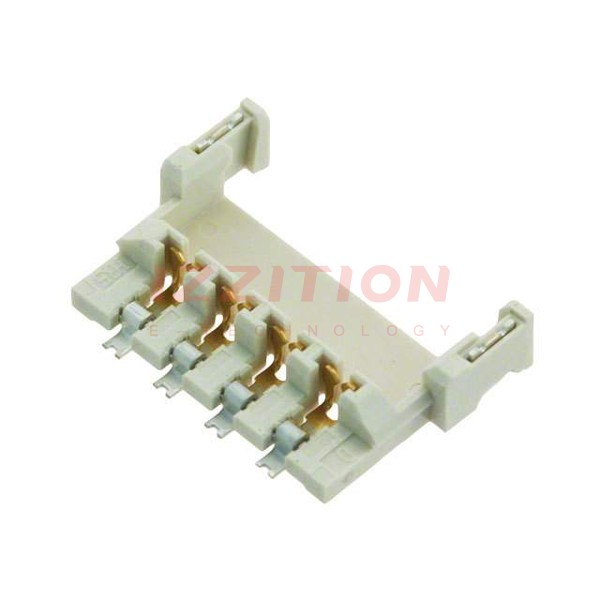

| Part Number | DF59-4S-2V(51) | DF59-2S-2V(51) | DF59-3S-2V(51) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active |
| Style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable |
| Connector Type | Receptacle | Receptacle | Receptacle |
| Number of Positions | 4 | 2 | 3 |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Termination | Solder | Solder | Solder |
| Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Fastening Type | - | - | - |
| Features | Solder Retention | Solder Retention | Solder Retention |
| Housing Color | Natural | Natural | Natural |
| Wire Gauge | - | - | - |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -35°C ~ 105°C | -35°C ~ 105°C | -35°C ~ 105°C |
