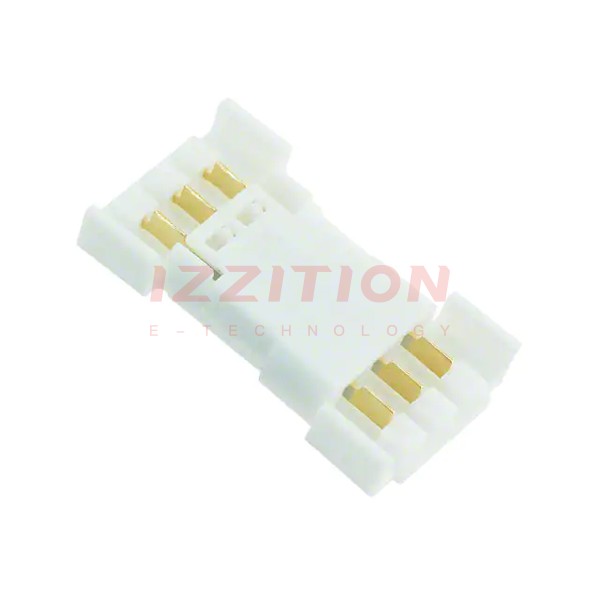

| Part Number | DF59-3P-2FC(50) | DF59-4P-2FC(50) | DF59-2P-2FC(50) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active |
| Style | Board to Board | Board to Board | Board to Board |
| Connector Type | Adapter, Bridge | Adapter, Bridge | Adapter, Bridge |
| Number of Positions | 3 | 4 | 2 |
| Mounting Type | Push Mount, Snap-In | Push Mount, Snap-In | Push Mount, Snap-In |
| Termination | - | - | - |
| Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Fastening Type | - | - | - |
| Features | - | - | - |
| Housing Color | Natural | Natural | Natural |
| Wire Gauge | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | Gold | Gold | Gold |
| Housing Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Operating Temperature | -35°C ~ 105°C | -35°C ~ 105°C | -35°C ~ 105°C |
