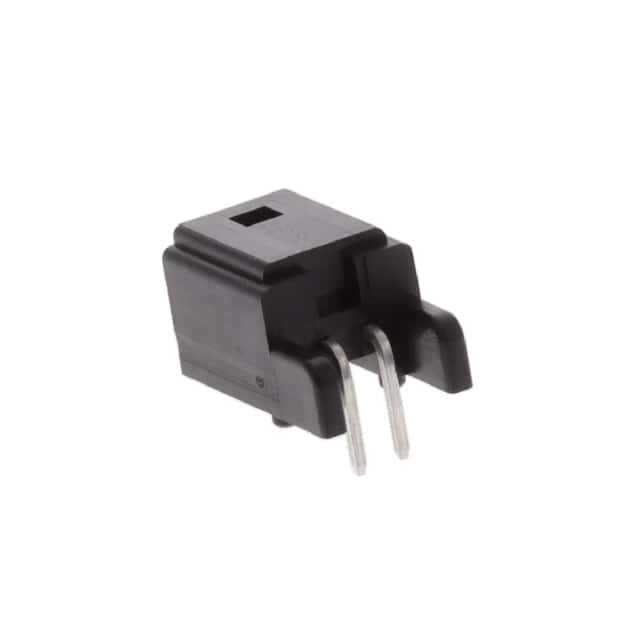

| Part Number | DF51KB-2P-2DS(800) | DF51KB-2P-2DS(805) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Positions | 2 | 2 |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Latch Holder | Latch Holder |
| Contact Length - Mating | - | - |
| Contact Length - Post | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Overall Contact Length | - | - |
| Insulation Height | 0.248" (6.30mm) | 0.248" (6.30mm) |
| Contact Shape | Square | Square |
| Contact Finish - Mating | Tin | Gold |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | 3.94µin (0.100µm) |
| Contact Finish - Post | Tin | Gold |
| Contact Material | Brass | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Guide | Board Guide |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Voltage Rating | 250VAC/DC | 250VAC/DC |
