DF51-4DP-2DS(20)
  • Share:

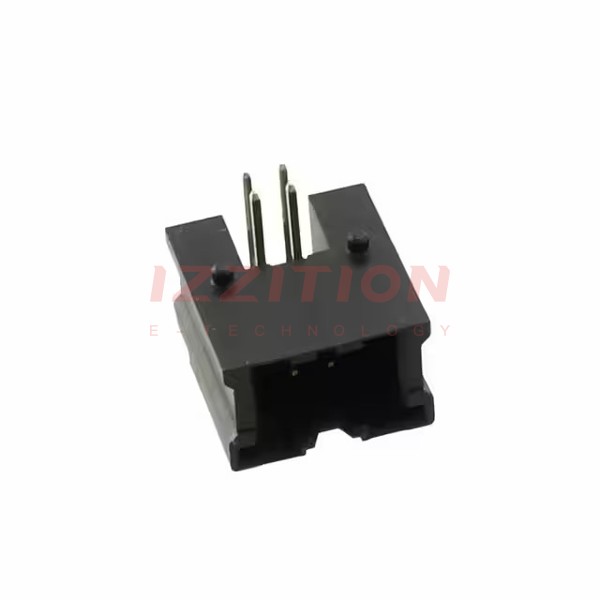

Hirose Electric Co Ltd DF51-4DP-2DS(20)

Manufacturer No:
DF51-4DP-2DS(20)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
DF51-4DP-2DS(20) Datasheet
ECAD Model:
-
Description:
CONN PLUG 4POS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:4
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.287" (7.30mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Board Guide
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:250VAC/DC
0 Remaining View Similar

In Stock

$0.53
1,653

Please send RFQ , we will respond immediately.
