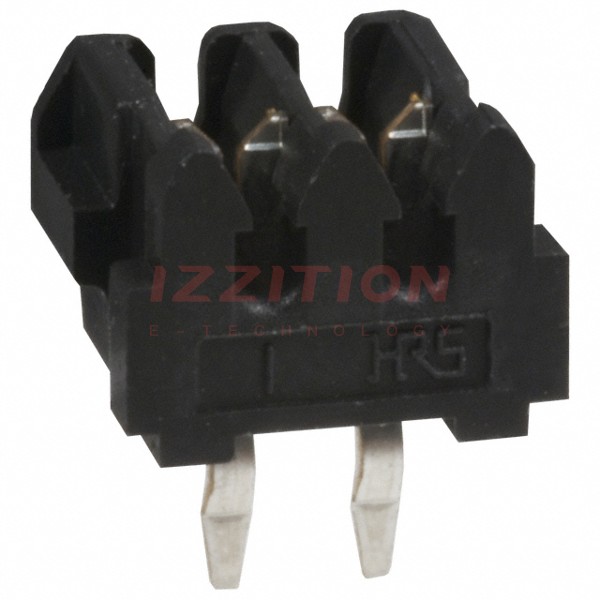

| Part Number | DF4-2PA-2R26 | DF4-3PA-2R26 | DF4-4PA-2R26 | DF4-5PA-2R26 | DF4-6PA-2R26 | DF4-7PA-2R26 | DF4-8PA-2R26 | DF4-9PA-2R26 | DF4-2PA-2R28 | DF4-12PA-2R26 | DF4-2P-2R26 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Individual Wires | Individual Wires | Individual Wires | Individual Wires | Individual Wires | Individual Wires | Individual Wires | Individual Wires | Individual Wires | Individual Wires | Individual Wires |
| Number of Positions | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 2 | 12 | 2 |
| Cable Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Board-Side Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole |
| Cable Termination | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC |
| Wire Gauge | 26 AWG, Stranded | 26 AWG, Stranded | 26 AWG, Stranded | 26 AWG, Stranded | 26 AWG, Stranded | 26 AWG, Stranded | 26 AWG, Stranded | 26 AWG, Stranded | 28 AWG, Stranded | 26 AWG, Stranded | 26 AWG, Stranded |
| Features | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness | - | - | - | - | - | - | - | - | - | - | - |
| Color | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black |
