DF3EA-6P-2V(50)
  • Share:

Hirose Electric Co Ltd DF3EA-6P-2V(50)

Manufacturer No:
DF3EA-6P-2V(50)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tube
Datasheet:
DF3EA-6P-2V(50) Datasheet
ECAD Model:
-
Description:

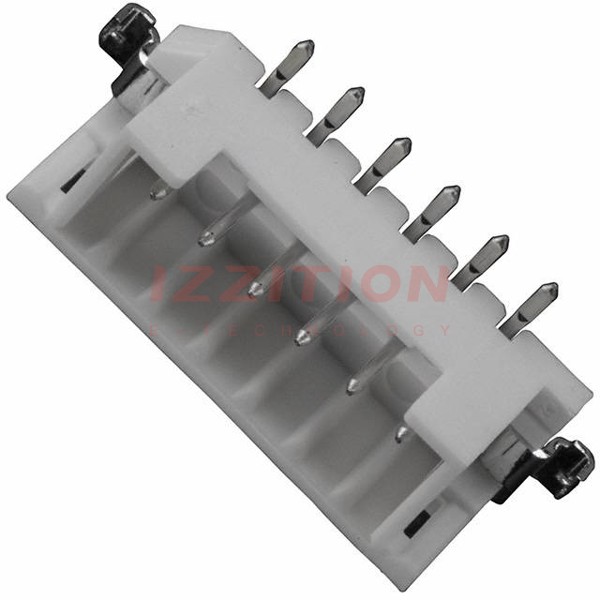

CONN HEADER SMD 6POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:6
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.232" (5.90mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Solder Retention
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

-
145

Please send RFQ , we will respond immediately.

Similar Products

Part Number DF3EA-6P-2V(50) DF3EA-6P-2V(51)   DF3E-6P-2V(50)   DF3EA-2P-2V(50)   DF3EA-3P-2V(50)   DF3EA-6P-2V(20)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Active Obsolete Obsolete Obsolete Obsolete
Connector Type Header Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm)
Number of Positions 6 6 6 2 3 6
Number of Rows 1 1 1 1 1 1
Row Spacing - Mating - - - - - -
Number of Positions Loaded All All All All All All
Style Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Termination Solder Solder Solder Solder Solder Solder
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull
Contact Length - Mating - - - - - -
Contact Length - Post - - - - - -
Overall Contact Length - - - - - -
Insulation Height 0.232" (5.90mm) 0.232" (5.90mm) 0.232" (5.90mm) 0.232" (5.90mm) 0.232" (5.90mm) 0.232" (5.90mm)
Contact Shape Circular Circular Circular Circular Circular Circular
Contact Finish - Mating Gold Gold Gold Gold Gold Tin
Contact Finish Thickness - Mating - 8.00µin (0.203µm) - - - 39.4µin (1.00µm)
Contact Finish - Post - - - - - Tin
Contact Material Brass Brass Brass Brass Brass Brass
Insulation Material Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon
Features Solder Retention Solder Retention Board Guide, Solder Retention Solder Retention Solder Retention Solder Retention
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C
Ingress Protection - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Beige Beige Beige Beige Beige Beige
Current Rating (Amps) Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge
Voltage Rating 250VAC 250VAC 250VAC 250VAC 250VAC 250VAC
