DF3DZ-3P-2H(76)
  • Share:

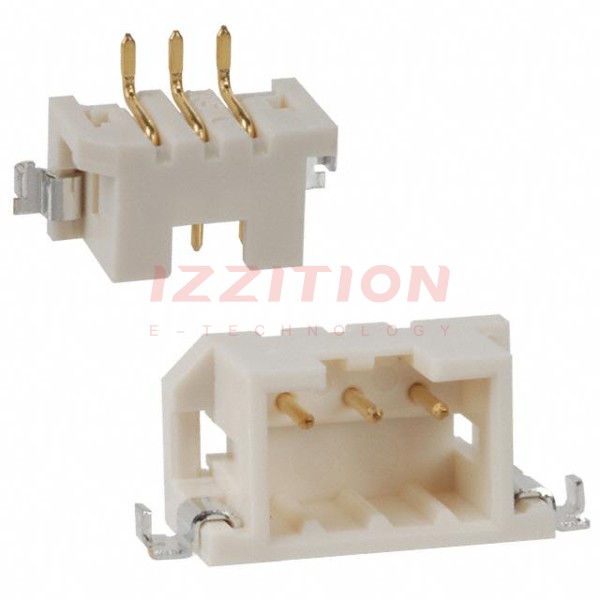

Hirose Electric Co Ltd DF3DZ-3P-2H(76)

Manufacturer No:
DF3DZ-3P-2H(76)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
DF3DZ-3P-2H(76) Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD R/A 3POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.220" (5.60mm)
Contact Shape:Circular
Contact Finish - Mating:-
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):3A
Voltage Rating:-
0 Remaining View Similar

In Stock

-
473

Please send RFQ , we will respond immediately.

Similar Products

Part Number DF3DZ-3P-2H(76) DF3DZ-5P-2H(76)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Discontinued at Digi-Key Discontinued at Digi-Key
Connector Type Header Header
Contact Type Male Pin Male Pin
Pitch - Mating 0.079" (2.00mm) 0.079" (2.00mm)
Number of Positions 3 5
Number of Rows 1 1
Row Spacing - Mating - -
Number of Positions Loaded All All
Style Board to Board or Cable Board to Board or Cable
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle Surface Mount, Right Angle
Termination Solder Solder
Fastening Type Push-Pull Push-Pull
Contact Length - Mating - -
Contact Length - Post - -
Overall Contact Length - -
Insulation Height 0.220" (5.60mm) 0.220" (5.60mm)
Contact Shape Circular Circular
Contact Finish - Mating - -
Contact Finish Thickness - Mating - -
Contact Finish - Post - -
Contact Material Brass Brass
Insulation Material Polyamide (PA), Nylon Polyamide (PA), Nylon
Features - -
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C
Ingress Protection - -
Material Flammability Rating UL94 V-0 UL94 V-0
Insulation Color Beige Beige
Current Rating (Amps) 3A 3A
Voltage Rating - -
