DF3DZ-10P-2V(73)
  • Share:

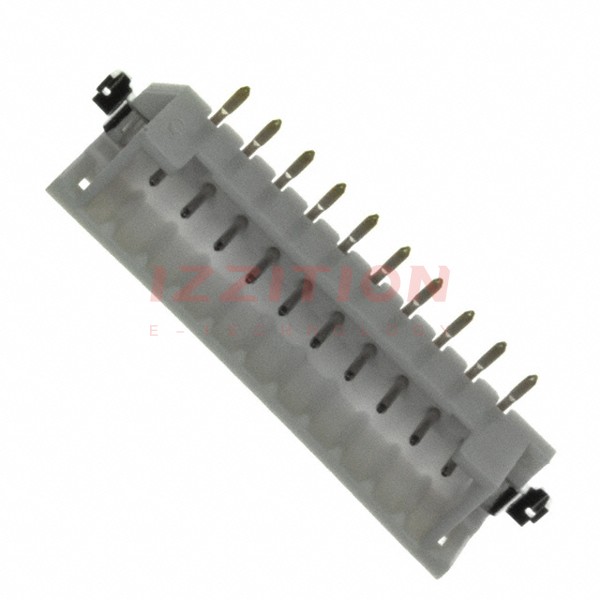

Hirose Electric Co Ltd DF3DZ-10P-2V(73)

Manufacturer No:
DF3DZ-10P-2V(73)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
DF3DZ-10P-2V(73) Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 10POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:10
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.232" (5.90mm)
Contact Shape:Circular
Contact Finish - Mating:-
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:-
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-30°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):3A
Voltage Rating:-
0 Remaining View Similar

In Stock

-
570

Please send RFQ , we will respond immediately.

Similar Products

Part Number DF3DZ-10P-2V(73) DF3DZ-12P-2V(73)   DF3DZ-15P-2V(73)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Discontinued at Digi-Key Discontinued at Digi-Key Discontinued at Digi-Key
Connector Type Header Header Header
Contact Type Male Pin Male Pin Male Pin
Pitch - Mating 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm)
Number of Positions 10 12 15
Number of Rows 1 1 1
Row Spacing - Mating - - -
Number of Positions Loaded All All All
Style Board to Board or Cable Board to Board or Cable Board to Board or Cable
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Surface Mount Surface Mount Surface Mount
Termination Solder Solder Solder
Fastening Type Push-Pull Push-Pull Push-Pull
Contact Length - Mating - - -
Contact Length - Post - - -
Overall Contact Length - - -
Insulation Height 0.232" (5.90mm) 0.232" (5.90mm) 0.232" (5.90mm)
Contact Shape Circular Circular Circular
Contact Finish - Mating - - -
Contact Finish Thickness - Mating - - -
Contact Finish - Post - - -
Contact Material - - -
Insulation Material Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon
Features - - -
Operating Temperature -30°C ~ 85°C -30°C ~ 85°C -30°C ~ 85°C
Ingress Protection - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Beige Beige Beige
Current Rating (Amps) 3A 3A 3A
Voltage Rating - - -
