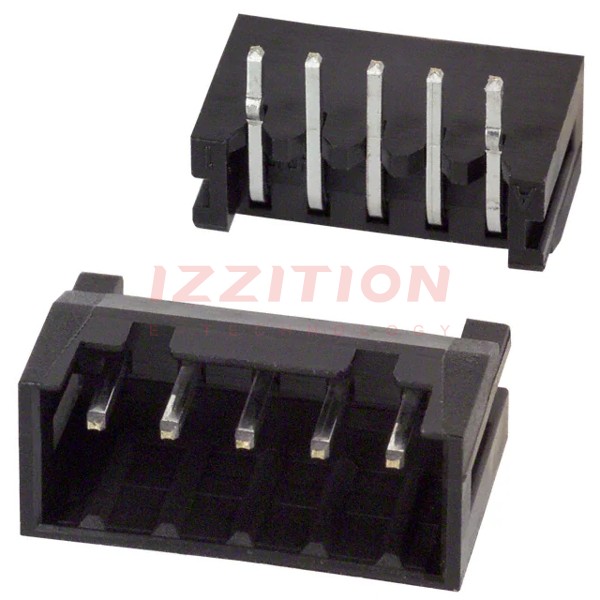

Hirose Electric Co Ltd-DF3A-5P-2DS - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Part Number	DF3A-5P-2DS	DF3A-6P-2DS	DF3A-5P-2DSA	DF3A-8P-2DS	DF3A-7P-2DS	DF3A-9P-2DS	DF3-5P-2DS	DF3A-15P-2DS	DF3A-2P-2DS	DF3A-3P-2DS	DF3A-4P-2DS
Manufacturer	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd
Product Status	Active	Active	Active	Active	Active	Active	Obsolete	Active	Active	Active	Active
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Positions	5	6	5	8	7	9	5	15	2	3	4
Number of Rows	1	1	1	1	1	1	1	1	1	1	1
Row Spacing - Mating	-	-	-	-	-	-	-	-	-	-	-
Number of Positions Loaded	All	All	All	All	All	All	All	All	All	All	All
Style	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Termination	Press-Fit, Solder	Press-Fit, Solder	Press-Fit, Solder	Press-Fit, Solder	Press-Fit, Solder	Press-Fit, Solder	Press-Fit, Solder	Press-Fit, Solder	Press-Fit, Solder	Press-Fit, Solder	Press-Fit, Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Length - Mating	0.122" (3.10mm)	0.122" (3.10mm)	0.122" (3.10mm)	0.122" (3.10mm)	0.122" (3.10mm)	0.122" (3.10mm)	0.122" (3.10mm)	0.122" (3.10mm)	0.122" (3.10mm)	0.122" (3.10mm)	0.122" (3.10mm)
Contact Length - Post	0.114" (2.90mm)	0.114" (2.90mm)	0.114" (2.90mm)	0.114" (2.90mm)	0.114" (2.90mm)	0.114" (2.90mm)	0.114" (2.90mm)	0.114" (2.90mm)	0.114" (2.90mm)	0.114" (2.90mm)	0.114" (2.90mm)
Overall Contact Length	-	-	0.299" (7.60mm)	-	-	-	-	-	-	-	-
Insulation Height	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Contact Finish Thickness - Mating	-	-	39.4µin (1.00µm)	-	-	-	-	-	-	-	-
Contact Finish - Post	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Contact Material	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Features	-	-	-	-	-	-	-	-	-	-	-
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Ingress Protection	-	-	-	-	-	-	-	-	-	-	-
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
Current Rating (Amps)	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A
Voltage Rating	-	-	-	-	-	-	-	-	-	-	-

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	5
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Press-Fit, Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.122" (3.10mm)
Contact Length - Post:	0.114" (2.90mm)
Overall Contact Length:	-
Insulation Height:	0.197" (5.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	-
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	-
