DF36A-30S-0.4V(55)
  • Share:

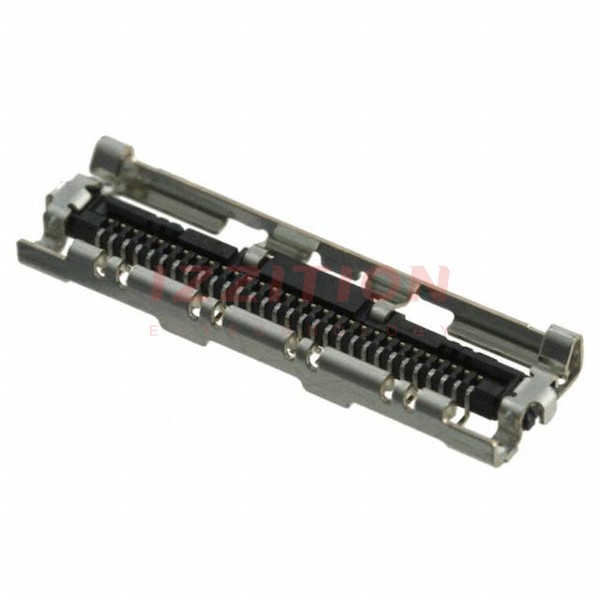

Hirose Electric Co Ltd DF36A-30S-0.4V(55)

Manufacturer No:
DF36A-30S-0.4V(55)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
DF36A-30S-0.4V(55) Datasheet
ECAD Model:
-
Description:
CONN RCPT 30POS 0.016 GOLD SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Center Strip Contact
Style:Board to Cable/Wire
Number of Positions:30
Number of Positions Loaded:All
Pitch - Mating:0.016" (0.40mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Friction Lock
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:12.0µin (0.30µm)
Insulation Color:Black
Insulation Height:0.059" (1.50mm)
Contact Length - Post:-
Operating Temperature:-35°C ~ 85°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Gold
Mated Stacking Heights:-
Ingress Protection:-
Features:Metal Cover, Solder Retention
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:30VAC
0 Remaining View Similar

In Stock

$1.43
443

Please send RFQ , we will respond immediately.

Similar Products

Part Number DF36A-30S-0.4V(55) DF36A-40S-0.4V(55)   DF36A-50S-0.4V(55)   DF36A-30S-0.4V(51)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Active Active
Connector Type Receptacle Receptacle Receptacle Receptacle
Contact Type Center Strip Contact Center Strip Contact Center Strip Contact Center Strip Contact
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Number of Positions 30 40 50 30
Number of Positions Loaded All All All All
Pitch - Mating 0.016" (0.40mm) 0.016" (0.40mm) 0.016" (0.40mm) 0.016" (0.40mm)
Number of Rows 1 1 1 1
Row Spacing - Mating - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Termination Solder Solder Solder Solder
Fastening Type Friction Lock Friction Lock Friction Lock Friction Lock
Contact Finish - Mating Gold Gold Gold Gold
Contact Finish Thickness - Mating 12.0µin (0.30µm) 12.0µin (0.30µm) 12.0µin (0.30µm) 12.0µin (0.30µm)
Insulation Color Black Black Black Black
Insulation Height 0.059" (1.50mm) 0.059" (1.50mm) 0.059" (1.50mm) 0.059" (1.50mm)
Contact Length - Post - - - -
Operating Temperature -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Contact Finish - Post Gold Gold Gold Gold
Mated Stacking Heights - - - -
Ingress Protection - - - -
Features Metal Cover, Solder Retention Metal Cover, Solder Retention Metal Cover, Solder Retention Metal Cover, Solder Retention
Current Rating (Amps) Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge
Voltage Rating 30VAC 30VAC 30VAC 30VAC
