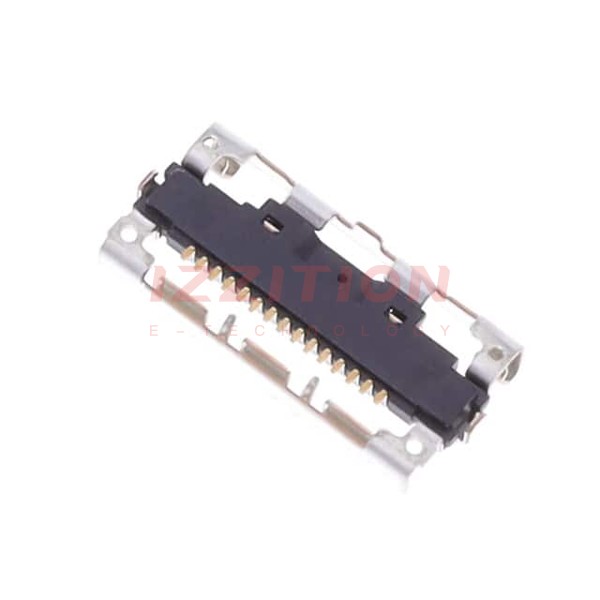

| Part Number | DF36A-15S-0.4V(51) | DF36A-25S-0.4V(51) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Type | Receptacle | Receptacle |
| Contact Type | Center Strip Contact | Center Strip Contact |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Number of Positions | 15 | 25 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.016" (0.40mm) | 0.016" (0.40mm) |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Termination | Solder | Solder |
| Fastening Type | Friction Lock | Friction Lock |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) | 12.0µin (0.30µm) |
| Insulation Color | Black | Black |
| Insulation Height | 0.059" (1.50mm) | 0.059" (1.50mm) |
| Contact Length - Post | - | - |
| Operating Temperature | -35°C ~ 85°C | -35°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Gold | Gold |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | Metal Cover, Solder Retention | Metal Cover, Solder Retention |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Voltage Rating | 30VAC | 30VAC |
