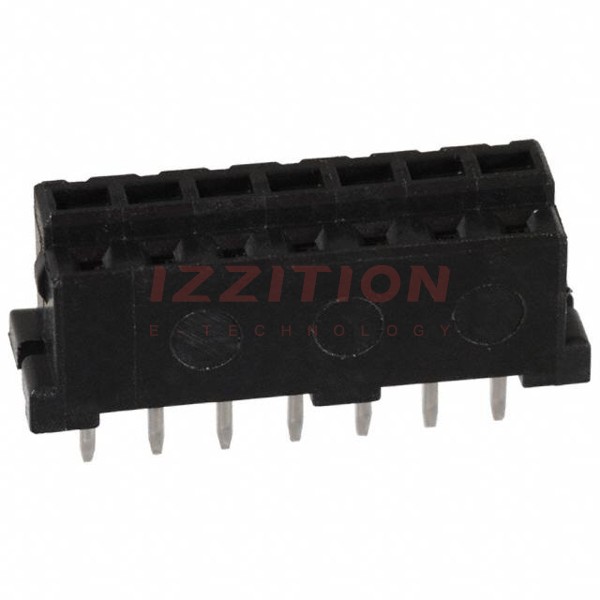

| Part Number | DF3-7S-2DSA(20) | DF3-7S-2DSA(25) | DF3-8S-2DSA(20) | DF3-7S-2DSA(50) | DF3-2S-2DSA(20) | DF3-3S-2DSA(20) | DF3-4S-2DSA(20) | DF3-5S-2DSA(20) | DF3-6S-2DSA(20) |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable |
| Number of Positions | 7 | 7 | 8 | 7 | 2 | 3 | 4 | 5 | 6 |
| Number of Positions Loaded | All | All | All | All | All | All | All | All | All |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Friction Lock | Friction Lock | Friction Lock | Friction Lock | Friction Lock | Friction Lock | Friction Lock | Friction Lock | Friction Lock |
| Contact Finish - Mating | Tin | Tin | Tin | Gold | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | - | 78.7µin (2.00µm) | - | - | - | - | - | - | - |
| Insulation Color | Black | Black | Black | Black | Black | Black | Black | Black | Black |
| Insulation Height | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) |
| Contact Length - Post | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Mated Stacking Heights | 6.6mm, 7.5mm | 6.6mm, 7.5mm | 6.6mm, 7.5mm | 6.6mm, 7.5mm | 6.6mm, 7.5mm | 6.6mm, 7.5mm | 6.6mm, 7.5mm | 6.6mm, 7.5mm | 6.6mm, 7.5mm |
| Ingress Protection | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
| Current Rating (Amps) | 3A | 3A | 3A | 3A | 3A | 3A | 3A | 3A | 3A |
| Voltage Rating | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC |
