DF3-2P-2DS(22)
  • Share:

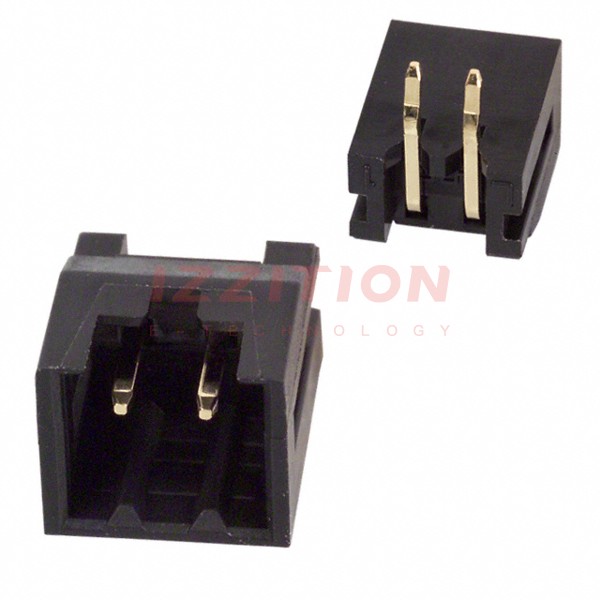

Hirose Electric Co Ltd DF3-2P-2DS(22)

Manufacturer No:
DF3-2P-2DS(22)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
DF3-2P-2DS(22) Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 2POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Press-Fit, Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.122" (3.10mm)
Contact Length - Post:0.114" (2.90mm)
Overall Contact Length:-
Insulation Height:0.197" (5.00mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
0 Remaining View Similar

In Stock

$0.44
1,058

Please send RFQ , we will respond immediately.
