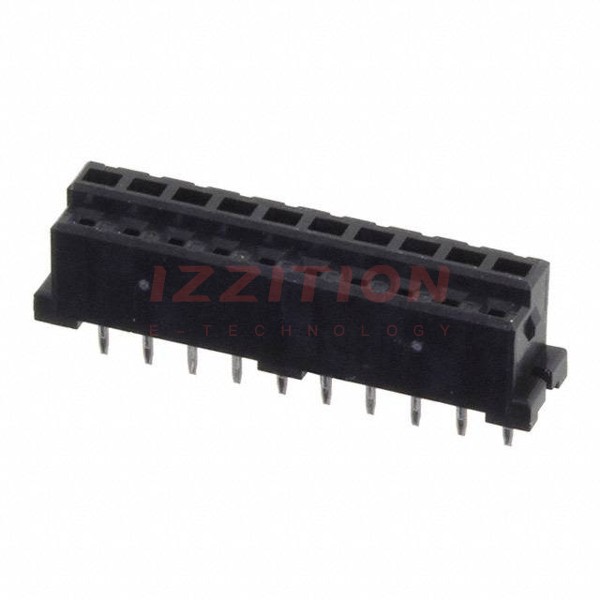

| Part Number | DF3-10S-2DSA(55) | DF3-12S-2DSA(55) | DF3-13S-2DSA(55) | DF3-11S-2DSA(55) | DF3-14S-2DSA(55) | DF3-15S-2DSA(55) | DF3-10S-2DSA(25) | DF3-10S-2DSA(50) |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable |
| Number of Positions | 10 | 12 | 13 | 11 | 14 | 15 | 10 | 10 |
| Number of Positions Loaded | All | All | All | All | All | All | All | All |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Friction Lock | Friction Lock | Friction Lock | Friction Lock | Friction Lock | Friction Lock | Friction Lock | Friction Lock |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold | Gold | Tin | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 78.7µin (2.00µm) | - |
| Insulation Color | Black | Black | Black | Black | Black | Black | Black | Black |
| Insulation Height | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) |
| Contact Length - Post | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Mated Stacking Heights | 6.6mm, 7.5mm | 6.6mm, 7.5mm | 6.6mm, 7.5mm | 6.6mm, 7.5mm | 6.6mm, 7.5mm | 6.6mm, 7.5mm | 6.6mm, 7.5mm | 6.6mm, 7.5mm |
| Ingress Protection | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
| Current Rating (Amps) | 3A | 3A | 3A | 3A | 3A | 3A | 3A | 3A |
| Voltage Rating | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC |
