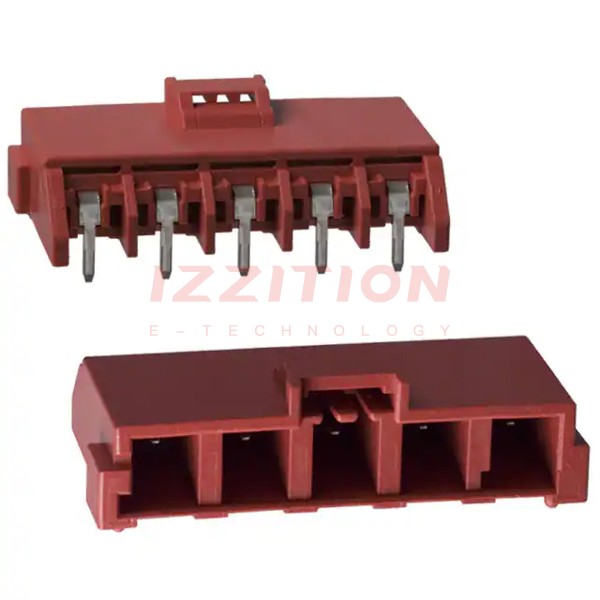

| Part Number | DF22L-5P-7.92DS(05) | DF22R-5P-7.92DS(05) | DF22L-5P-7.92DSA(05) | DF22-5P-7.92DS(05) | DF22L-2P-7.92DS(05) | DF22L-3P-7.92DS(05) | DF22L-4P-7.92DS(05) |
|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Header | Header | Header | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) |
| Number of Positions | 5 | 5 | 5 | 5 | 2 | 3 | 4 |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - | - | - | - | - |
| Number of Positions Loaded | All | All | All | All | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Latch Holder | Latch Holder | Latch Holder | Latch Holder | Latch Holder | Latch Holder | Latch Holder |
| Contact Length - Mating | 0.354" (9.00mm) | 0.354" (9.00mm) | 0.354" (9.00mm) | 0.354" (9.00mm) | 0.354" (9.00mm) | 0.354" (9.00mm) | 0.354" (9.00mm) |
| Contact Length - Post | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) |
| Overall Contact Length | - | - | - | - | - | - | - |
| Insulation Height | 0.480" (12.20mm) | 0.480" (12.20mm) | 0.713" (18.10mm) | 0.480" (12.20mm) | 0.480" (12.20mm) | 0.480" (12.20mm) | 0.480" (12.20mm) |
| Contact Shape | Square | Square | Square | Square | Square | Square | Square |
| Contact Finish - Mating | Tin-Copper | Tin-Copper | Tin | Tin-Copper | Tin-Copper | Tin-Copper | Tin-Copper |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | 39.4µin (1.00µm) | 39.4µin (1.00µm) | 39.4µin (1.00µm) | 39.4µin (1.00µm) | 39.4µin (1.00µm) | 39.4µin (1.00µm) |
| Contact Finish - Post | - | - | - | Tin | - | - | - |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Features | Board Guide | Board Guide | Board Guide | Board Guide | Board Guide | Board Guide | Board Guide |
| Operating Temperature | -35°C ~ 85°C | -35°C ~ 85°C | -35°C ~ 85°C | -35°C ~ 85°C | -35°C ~ 85°C | -35°C ~ 85°C | -35°C ~ 85°C |
| Ingress Protection | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Red | Black | Red | Beige | Red | Red | Red |
| Current Rating (Amps) | 22A | 22A | 22A | 22A | 25A | 25A | 22A |
| Voltage Rating | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V |
