DF22L-2P-7.92DS(66)
  • Share:

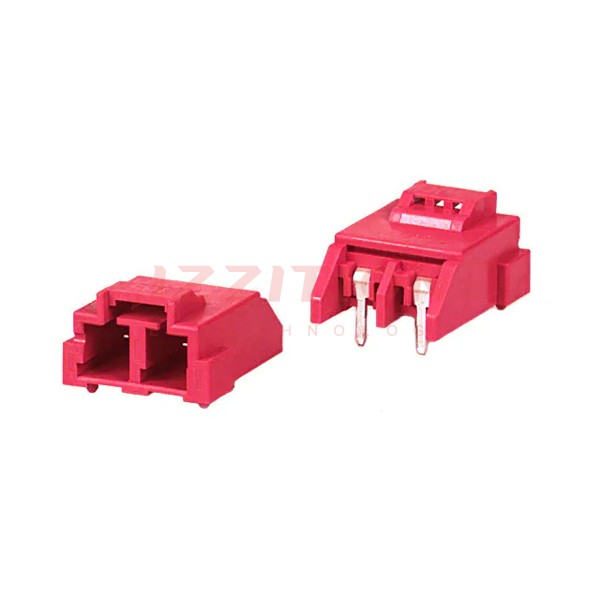

Hirose Electric Co Ltd DF22L-2P-7.92DS(66)

Manufacturer No:
DF22L-2P-7.92DS(66)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
DF22L-2P-7.92DS(66) Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 2POS 7.92MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.312" (7.92mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.354" (9.00mm)
Contact Length - Post:0.146" (3.70mm)
Overall Contact Length:-
Insulation Height:0.480" (12.20mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon
Features:Board Guide
Operating Temperature:-35°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Red
Current Rating (Amps):25A
Voltage Rating:1000V
0 Remaining View Similar

In Stock

-
527

Please send RFQ , we will respond immediately.
