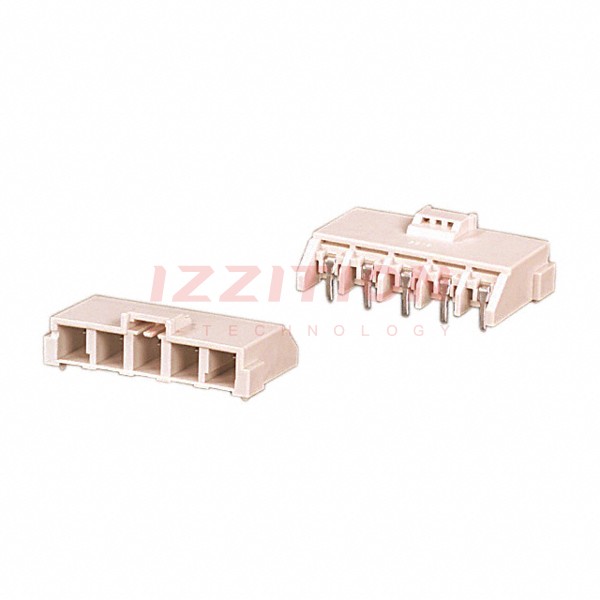

Hirose Electric Co Ltd DF22-5P-7.92DS

Manufacturer No:
DF22-5P-7.92DS
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
DF22-5P-7.92DS Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 5POS 7.92MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.312" (7.92mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.354" (9.00mm)
Contact Length - Post:0.146" (3.70mm)
Overall Contact Length:-
Insulation Height:0.480" (12.20mm)
Contact Shape:Square
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon
Features:Board Guide
Operating Temperature:-35°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):22A
Voltage Rating:1000V
0 Remaining View Similar

In Stock

-
282

Please send RFQ , we will respond immediately.

Similar Products

Part Number DF22-5P-7.92DS DF22-5P-7.92DSA   DF22L-5P-7.92DS   DF22R-5P-7.92DS   DF22-2P-7.92DS   DF22-3P-7.92DS   DF22-4P-7.92DS
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Connector Type Header Header Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.312" (7.92mm) 0.312" (7.92mm) 0.312" (7.92mm) 0.312" (7.92mm) 0.312" (7.92mm) 0.312" (7.92mm) 0.312" (7.92mm)
Number of Positions 5 5 5 5 2 3 4
Number of Rows 1 1 1 1 1 1 1
Row Spacing - Mating - - - - - - -
Number of Positions Loaded All All All All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle Through Hole Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle
Termination Solder Solder Solder Solder Solder Solder Solder
Fastening Type Latch Holder Latch Holder Latch Holder Latch Holder Latch Holder Latch Holder Latch Holder
Contact Length - Mating 0.354" (9.00mm) 0.354" (9.00mm) 0.354" (9.00mm) 0.354" (9.00mm) 0.354" (9.00mm) 0.354" (9.00mm) 0.354" (9.00mm)
Contact Length - Post 0.146" (3.70mm) 0.146" (3.70mm) 0.146" (3.70mm) 0.146" (3.70mm) 0.146" (3.70mm) 0.146" (3.70mm) 0.146" (3.70mm)
Overall Contact Length - - - - - - -
Insulation Height 0.480" (12.20mm) 0.713" (18.10mm) 0.480" (12.20mm) 0.480" (12.20mm) 0.480" (12.20mm) 0.480" (12.20mm) 0.480" (12.20mm)
Contact Shape Square Square Square Square Square Square Square
Contact Finish - Mating Tin-Lead Tin Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead
Contact Finish Thickness - Mating - - - - - - -
Contact Finish - Post - Tin - - - - -
Contact Material Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy
Insulation Material Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon
Features Board Guide Board Guide Board Guide Board Guide Board Guide Board Guide Board Guide
Operating Temperature -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C
Ingress Protection - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Beige Beige Red Black Beige Beige Beige
Current Rating (Amps) 22A 22A 22A 22A 25A 25A 22A
Voltage Rating 1000V 1000V 1000V 1000V 1000V 1000V 1000V
