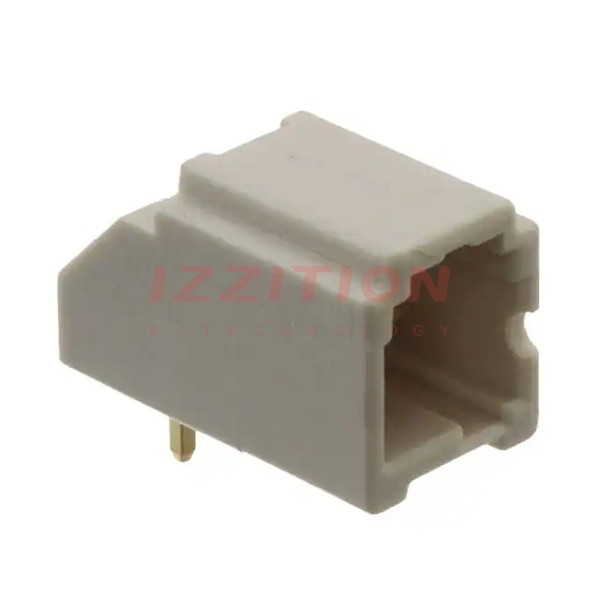

| Part Number | DF1E-2P-2.5DS(36) | DF1E-2P-2.5DS(35) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Number of Positions | 2 | 2 |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | - | - |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Latch Holder | Latch Holder |
| Contact Length - Mating | 0.177" (4.50mm) | 0.177" (4.50mm) |
| Contact Length - Post | 0.114" (2.90mm) | 0.114" (2.90mm) |
| Overall Contact Length | - | - |
| Insulation Height | 0.315" (8.00mm) | 0.315" (8.00mm) |
| Contact Shape | Square | Square |
| Contact Finish - Mating | Gold | Tin |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | 39.4µin (1.00µm) |
| Contact Finish - Post | - | Tin |
| Contact Material | Brass | Brass |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Features | - | - |
| Operating Temperature | -35°C ~ 85°C | -35°C ~ 85°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Natural | Natural |
| Current Rating (Amps) | 3A | 3A |
| Voltage Rating | - | - |
