Please send RFQ , we will respond immediately.

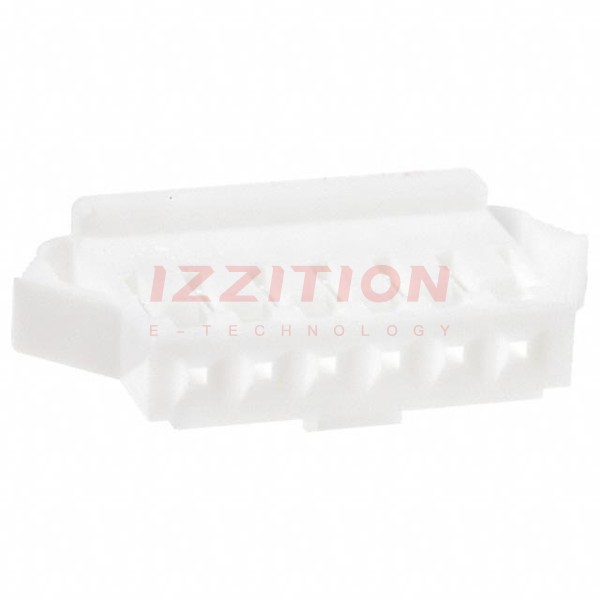

| Part Number | DF1B-6ES-2.5RC | DF1B-7ES-2.5RC | DF1B-8ES-2.5RC | DF1B-9ES-2.5RC | DF1B-2ES-2.5RC | DF1B-3ES-2.5RC | DF1B-4ES-2.5RC | DF1B-5ES-2.5RC | DF1B-6DS-2.5RC | DF1B-6EP-2.5RC |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Plug |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Male Pin |
| Number of Positions | 6 | 7 | 8 | 9 | 2 | 3 | 4 | 5 | 6 | 6 |
| Pitch | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 1 |
| Row Spacing | - | - | - | - | - | - | - | - | 0.098" (2.50mm) | - |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Contact Termination | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC |
| Fastening Type | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | - | Latch Lock |
| Color | White | White | White | White | White | White | White | White | White | White |
| Features | - | - | - | - | - | - | - | - | - | - |
