Hirose Electric Co Ltd DF1B-40DP-2.5DS

Manufacturer No:
DF1B-40DP-2.5DS
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
DF1B-40DP-2.5DS Datasheet
ECAD Model:
-
Description:

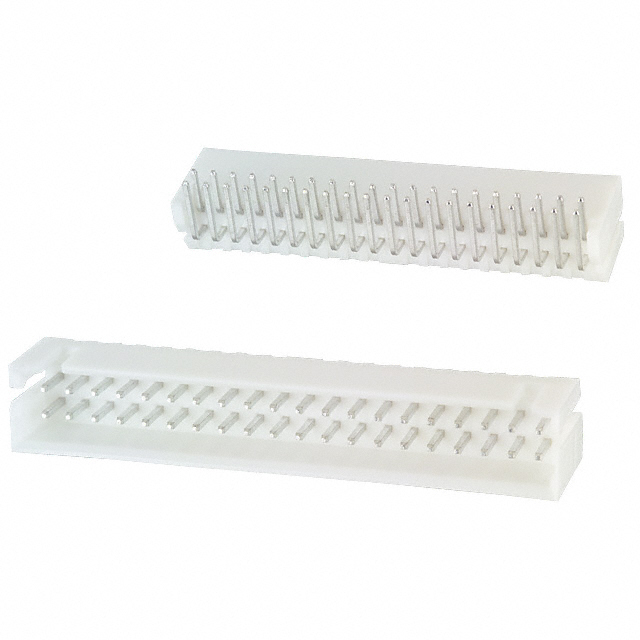

CONN HEADER R/A 40POS 2.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:40
Number of Rows:2
Row Spacing - Mating:0.098" (2.50mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.177" (4.50mm)
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:-
Insulation Height:0.339" (8.61mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Keying Slot
Operating Temperature:-35°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:White
Current Rating (Amps):-
Voltage Rating:250V
0 Remaining View Similar

In Stock

-
274

Please send RFQ , we will respond immediately.

Similar Products

Part Number DF1B-40DP-2.5DS DF1B-40DP-2.5DSA   DF1B-4DP-2.5DS   DF1B-10DP-2.5DS   DF1B-20DP-2.5DS   DF1B-30DP-2.5DS
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Connector Type Header Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm)
Number of Positions 40 40 4 10 20 30
Number of Rows 2 2 2 2 2 2
Row Spacing - Mating 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm)
Number of Positions Loaded All All All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle Through Hole Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle
Termination Solder Solder Solder Solder Solder Solder
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull
Contact Length - Mating 0.177" (4.50mm) 0.177" (4.50mm) 0.177" (4.50mm) 0.177" (4.50mm) 0.177" (4.50mm) 0.177" (4.50mm)
Contact Length - Post 0.130" (3.30mm) 0.142" (3.60mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm)
Overall Contact Length - 0.417" (10.60mm) - - - -
Insulation Height 0.339" (8.61mm) 0.374" (9.50mm) 0.339" (8.61mm) 0.339" (8.61mm) 0.339" (8.61mm) 0.339" (8.61mm)
Contact Shape Square Square Square Square Square Square
Contact Finish - Mating Tin Tin Tin Tin Tin Tin
Contact Finish Thickness - Mating - - - - - -
Contact Finish - Post Tin Tin Tin Tin Tin Tin
Contact Material Brass Brass Brass Brass Brass Brass
Insulation Material Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon
Features Keying Slot Keying Slot Keying Slot Keying Slot Keying Slot Keying Slot
Operating Temperature -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C
Ingress Protection - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color White White White White White White
Current Rating (Amps) - - - - - -
Voltage Rating 250V 250V 250V 250V 250V 250V
