Please send RFQ , we will respond immediately.

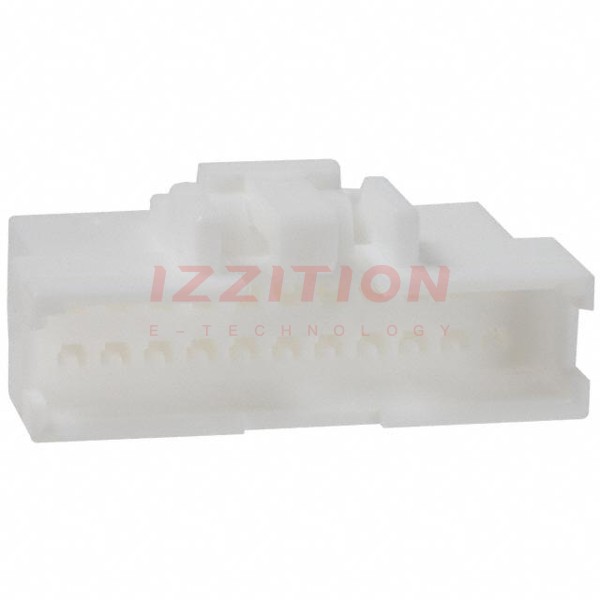

| Part Number | DF1B-22DEP-2.5RC | DF1B-32DEP-2.5RC | DF1B-26DEP-2.5RC | DF1BA-22DEP-2.5RC | DF1B-24DEP-2.5RC | DF1B-22DES-2.5RC | DF1B-28DEP-2.5RC | DF1B-12DEP-2.5RC | DF1B-20DEP-2.5RC |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Plug | Plug | Plug | Plug | Plug | Receptacle | Plug | Plug | Plug |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Female Socket | Male Pin | Male Pin | Male Pin |
| Number of Positions | 22 | 32 | 26 | 22 | 24 | 22 | 28 | 12 | 20 |
| Pitch | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Row Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Contact Termination | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock | - | Latch Lock | Locking Ramp | Latch Lock | Latch Lock | Latch Lock |
| Color | White | White | White | White | White | White | White | White | White |
| Features | - | - | - | - | - | - | - | - | - |
