Please send RFQ , we will respond immediately.

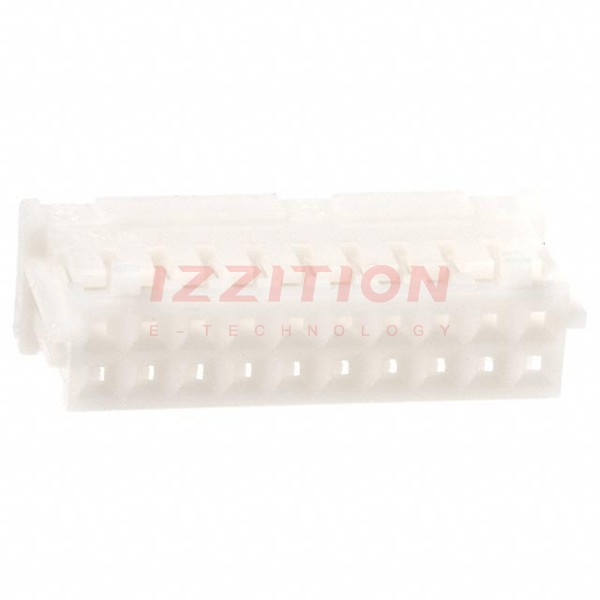

| Part Number | DF1B-20DS-2.5RC | DF1B-24DS-2.5RC | DF1B-26DS-2.5RC | DF1B-30DS-2.5RC | DF1B-40DS-2.5RC | DF1B-22DS-2.5RC | DF1B-28DS-2.5RC | DF1B-10DS-2.5RC | DF1B-20DES-2.5RC |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Number of Positions | 20 | 24 | 26 | 30 | 40 | 22 | 28 | 10 | 20 |
| Pitch | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Row Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In |
| Contact Termination | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC | Crimp, IDC |
| Fastening Type | - | - | - | - | - | - | - | - | Locking Ramp |
| Color | White | White | White | White | White | White | White | White | White |
| Features | - | - | - | - | - | - | - | - | - |
