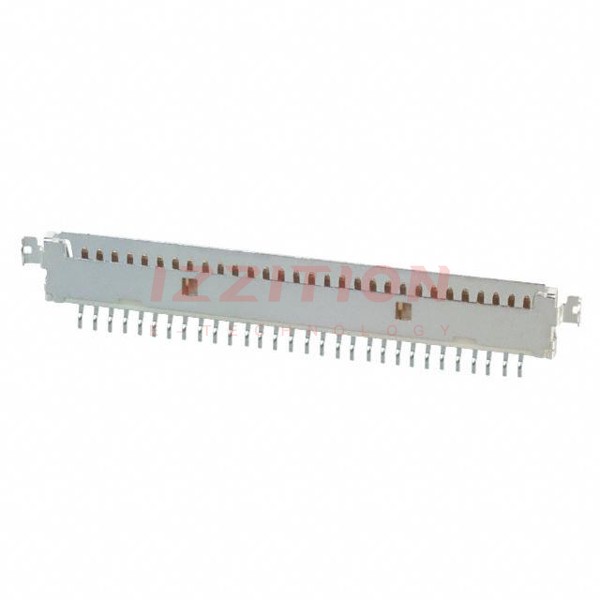

DF19L-30P-1H(59)
  • Share:

Hirose Electric Co Ltd DF19L-30P-1H(59)

Manufacturer No:
DF19L-30P-1H(59)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
DF19L-30P-1H(59) Datasheet
ECAD Model:
-
Description:
CONN HEADER BRD EDGE 30P 1MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Male Pin
Pitch - Mating:0.039" (1.00mm)
Number of Positions:30
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 3 Wall
Mounting Type:Board Edge, Cutout; Surface Mount, Right Angle
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.057" (1.45mm)
Contact Shape:-
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA), Nylon
Features:Solder Retention
Operating Temperature:-35°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):-
Voltage Rating:100V
0 Remaining View Similar

In Stock

-
605

Please send RFQ , we will respond immediately.

Similar Products

Part Number DF19L-30P-1H(59) DF19G-30P-1H(59)   DF19K-30P-1H(59)   DF19L-20P-1H(59)   DF19L-30P-1H(52)   DF19L-30P-1H(54)   DF19L-30P-1H(56)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Obsolete Obsolete Active Obsolete Obsolete
Connector Type Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.039" (1.00mm) 0.039" (1.00mm) 0.039" (1.00mm) 0.039" (1.00mm) 0.039" (1.00mm) 0.039" (1.00mm) 0.039" (1.00mm)
Number of Positions 30 30 30 20 30 30 30
Number of Rows 1 1 1 1 1 1 1
Row Spacing - Mating - - - - - - -
Number of Positions Loaded All All All All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 3 Wall Shrouded - 3 Wall Shrouded - 3 Wall Shrouded - 3 Wall Shrouded - 3 Wall Shrouded - 3 Wall Shrouded - 3 Wall
Mounting Type Board Edge, Cutout; Surface Mount, Right Angle Surface Mount, Right Angle Board Edge, Cutout; Surface Mount, Right Angle Board Edge, Cutout; Surface Mount, Right Angle Board Edge, Cutout; Surface Mount, Right Angle Board Edge, Cutout; Surface Mount, Right Angle Board Edge, Cutout; Surface Mount, Right Angle
Termination Solder Solder Solder Solder Solder Solder Solder
Fastening Type Friction Lock Friction Lock Friction Lock Friction Lock Friction Lock Friction Lock Friction Lock
Contact Length - Mating - - - - - - -
Contact Length - Post - - - - - - -
Overall Contact Length - - - - - - -
Insulation Height 0.057" (1.45mm) 0.065" (1.65mm) 0.057" (1.45mm) 0.057" (1.45mm) 0.057" (1.45mm) 0.057" (1.45mm) 0.057" (1.45mm)
Contact Shape - - - - - - -
Contact Finish - Mating Gold Gold Gold Gold Gold Gold Gold
Contact Finish Thickness - Mating - - - - 3.94µin (0.100µm) - -
Contact Finish - Post - - - - Gold - -
Contact Material Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze
Insulation Material Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon
Features Solder Retention Glow Wire Compliant, Shielded, Solder Retention Solder Retention Solder Retention Solder Retention Solder Retention Solder Retention
Operating Temperature -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C
Ingress Protection - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Beige Black Beige Beige Black Black Beige
Current Rating (Amps) - - - - Varies by Wire Gauge - -
Voltage Rating 100V 100V 100V 100V 100VAC 100V 100V
