DF19-20P-1V(56)
  • Share:

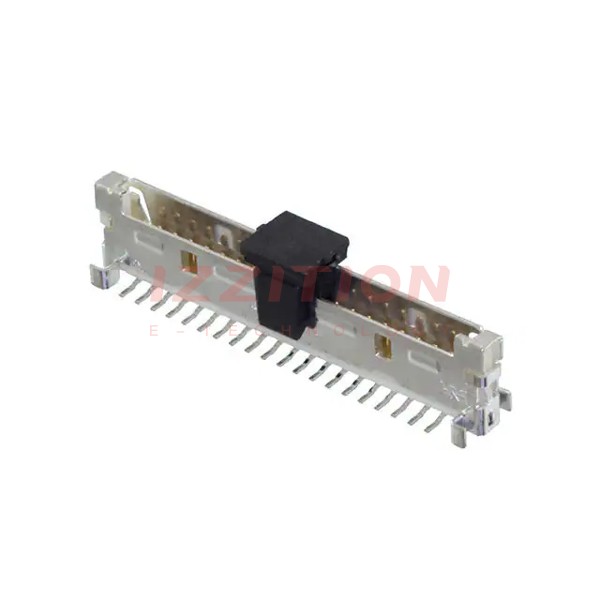

Hirose Electric Co Ltd DF19-20P-1V(56)

Manufacturer No:
DF19-20P-1V(56)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
DF19-20P-1V(56) Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 20POS 1MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Male Pin
Pitch - Mating:0.039" (1.00mm)
Number of Positions:20
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.206" (5.23mm)
Contact Shape:-
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.90µin (0.099µm)
Contact Finish - Post:Tin-Copper
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA), Nylon
Features:Pick and Place, Solder Retention
Operating Temperature:-35°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):-
Voltage Rating:100V
0 Remaining View Similar

In Stock

$3.74
147

Please send RFQ , we will respond immediately.
