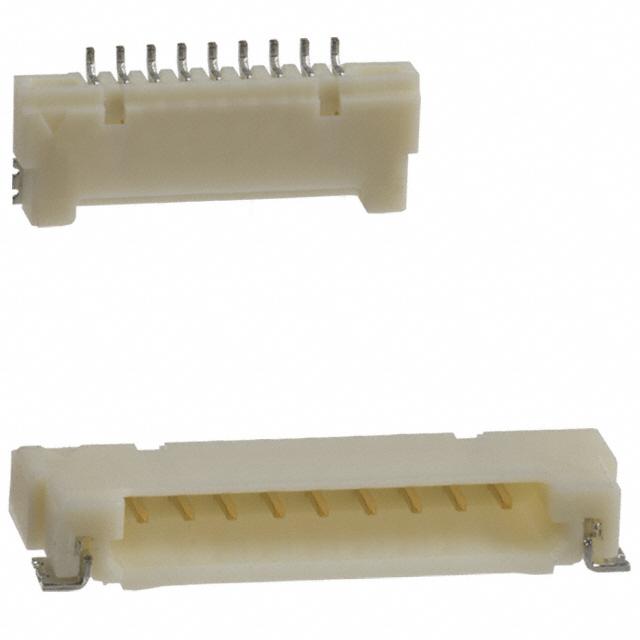

| Part Number | DF14A-9P-1.25H(50) | DF14A-9P-1.25H(52) | DF14A-9P-1.25H(55) | DF14A-9P-1.25H(56) | DF14A-2P-1.25H(50) | DF14A-3P-1.25H(50) | DF14A-4P-1.25H(50) | DF14A-5P-1.25H(50) | DF14A-6P-1.25H(50) | DF14A-7P-1.25H(50) | DF14A-8P-1.25H(50) | DF14A-9P-1.25H(20) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Header | Header | Header | Header | Header | Header | Header | Header | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) |
| Number of Positions | 9 | 9 | 9 | 9 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Positions Loaded | All | All | All | All | All | All | All | All | All | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Contact Length - Mating | - | 0.087" (2.20mm) | 0.086" (2.20mm) | 0.086" (2.20mm) | - | - | - | - | - | - | - | - |
| Contact Length - Post | - | - | - | - | - | - | - | - | - | - | - | - |
| Overall Contact Length | - | - | - | - | - | - | - | - | - | - | - | - |
| Insulation Height | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Contact Shape | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Tin |
| Contact Finish Thickness - Mating | - | 3.94µin (0.100µm) | 3.90µin (0.099µm) | 3.90µin (0.099µm) | - | - | - | - | - | - | - | - |
| Contact Finish - Post | - | Gold | Tin-Copper | Tin-Copper | - | - | - | - | - | - | - | Tin |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Features | Solder Retention | Solder Retention | Solder Retention | Solder Retention | Solder Retention | Solder Retention | Solder Retention | Solder Retention | Solder Retention | Solder Retention | Solder Retention | Solder Retention |
| Operating Temperature | -25°C ~ 85°C | -35°C ~ 85°C | -25°C ~ 85°C | -35°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Ingress Protection | - | - | - | - | - | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Beige | Beige | Beige | Beige | Beige | Beige | Beige | Beige | Beige | Beige | Beige | Beige |
| Current Rating (Amps) | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A |
| Voltage Rating | 150V | 150VAC | 150V | 150V | 150V | 150V | 150V | 150V | 150V | 150V | 150V | 150V |
