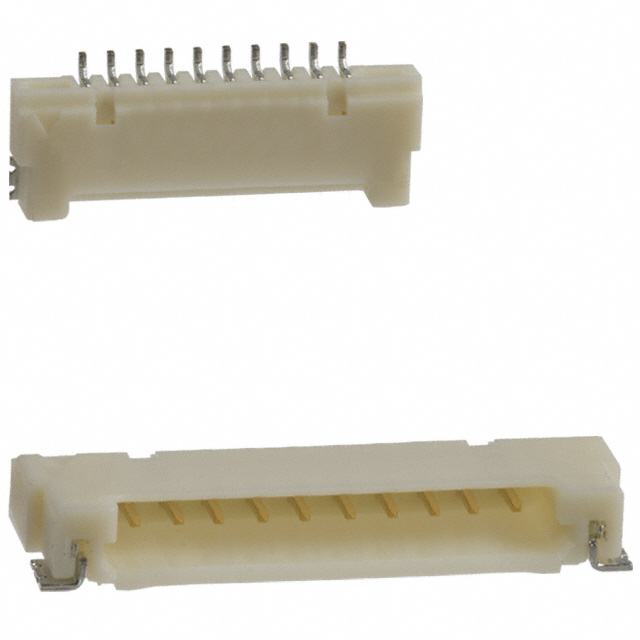

Hirose Electric Co Ltd DF14A-10P-1.25H(20)

Manufacturer No:
DF14A-10P-1.25H(20)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tube
Datasheet:
DF14A-10P-1.25H(20) Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD R/A 10POS 1.25MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.049" (1.25mm)
Number of Positions:10
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.098" (2.50mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Solder Retention
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):1A
Voltage Rating:150V
0 Remaining View Similar

In Stock

-
225

Please send RFQ , we will respond immediately.

Similar Products

Part Number DF14A-10P-1.25H(20) DF14A-10P-1.25H(26)   DF14A-15P-1.25H(20)   DF14A-20P-1.25H(20)   DF14A-30P-1.25H(20)   DF14A-10P-1.25H(50)   DF14A-10P-1.25H(25)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Connector Type Header Header Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm)
Number of Positions 10 10 15 20 30 10 10
Number of Rows 1 1 1 1 1 1 1
Row Spacing - Mating - - - - - - -
Number of Positions Loaded All All All All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle
Termination Solder Solder Solder Solder Solder Solder Solder
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull
Contact Length - Mating - 0.086" (2.20mm) - - - - 0.086" (2.20mm)
Contact Length - Post - - - - - - -
Overall Contact Length - - - - - - -
Insulation Height 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm)
Contact Shape Square Square Square Square Square Square Square
Contact Finish - Mating Tin Tin-Copper Tin Tin Tin Gold Tin-Copper
Contact Finish Thickness - Mating - 39.4µin (1.00µm) - - - - 3.90µin (0.099µm)
Contact Finish - Post Tin - Tin Tin Tin - -
Contact Material Brass Brass Brass Brass Brass Brass Brass
Insulation Material Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon
Features Solder Retention Solder Retention Solder Retention Solder Retention Solder Retention Solder Retention Solder Retention
Operating Temperature -25°C ~ 85°C -35°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
Ingress Protection - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Beige Beige Beige Beige Beige Beige Beige
Current Rating (Amps) 1A 1A 1A 1A 1A 1A 1A
Voltage Rating 150V 150V 150V 150V 150V 150V 150V
