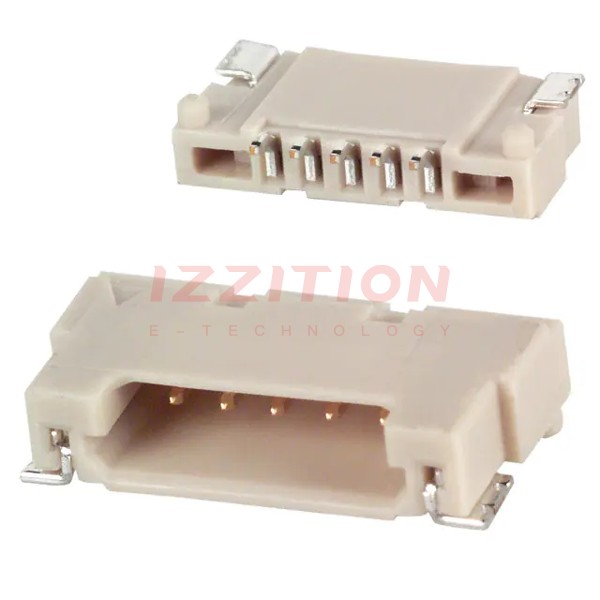

Hirose Electric Co Ltd-DF14-5P-1.25H(56) - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Part Number	DF14-5P-1.25H(56)	DF14-9P-1.25H(56)	DF14-7P-1.25H(56)	DF14-6P-1.25H(56)	DF14-8P-1.25H(56)	DF14-15P-1.25H(56)	DF14-25P-1.25H(56)	DF14-2P-1.25H(56)	DF14-3P-1.25H(56)	DF14-4P-1.25H(56)	DF14-5P-1.25H(26)	DF14-5P-1.25H(50)	DF14-5P-1.25H(52)	DF14-5P-1.25H(54)	DF14-5P-1.25H(55)
Manufacturer	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Active	Obsolete	Obsolete
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)
Number of Positions	5	9	7	6	8	15	25	2	3	4	5	5	5	5	5
Number of Rows	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Row Spacing - Mating	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Number of Positions Loaded	All	All	All	All	All	All	All	All	All	All	All	All	All	All	All
Style	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Length - Mating	0.086" (2.20mm)	0.086" (2.20mm)	0.086" (2.20mm)	0.086" (2.20mm)	0.086" (2.20mm)	0.086" (2.20mm)	0.086" (2.20mm)	0.086" (2.20mm)	0.086" (2.20mm)	0.086" (2.20mm)	0.086" (2.20mm)	-	0.087" (2.20mm)	0.086" (2.20mm)	0.086" (2.20mm)
Contact Length - Post	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Overall Contact Length	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Insulation Height	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Tin-Copper	Gold	Gold	Gold	Gold
Contact Finish Thickness - Mating	3.90µin (0.099µm)	3.90µin (0.099µm)	3.90µin (0.099µm)	3.90µin (0.099µm)	3.90µin (0.099µm)	3.90µin (0.099µm)	3.90µin (0.099µm)	3.90µin (0.099µm)	3.90µin (0.099µm)	3.90µin (0.099µm)	39.4µin (1.00µm)	-	3.94µin (0.100µm)	3.94µin (0.100µm)	3.90µin (0.099µm)
Contact Finish - Post	Tin-Copper	Tin-Copper	Tin-Copper	Tin-Copper	Tin-Copper	Tin-Copper	Tin-Copper	Tin-Copper	Tin-Copper	Tin-Copper	-	-	Gold	Tin-Copper	Tin-Copper
Contact Material	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Features	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention
Operating Temperature	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C
Ingress Protection	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Beige	Beige	Beige	Beige	Beige	Beige	Beige	Beige	Beige	Beige	Beige	Beige	Beige	Beige	Beige
Current Rating (Amps)	1A	1A	1A	1A	1A	1A	1A	1A	1A	1A	1A	1A	1A	1A	1A
Voltage Rating	150V	150V	150V	150V	150V	150V	150V	150V	150V	150V	150V	150V	150VAC	150VAC	150V

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.049" (1.25mm)
Number of Positions:	5
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.086" (2.20mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.098" (2.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	3.90µin (0.099µm)
Contact Finish - Post:	Tin-Copper
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	Board Guide, Solder Retention
Operating Temperature:	-35°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Beige
Current Rating (Amps):	1A
Voltage Rating:	150V

Hirose Electric Co Ltd DF14-5P-1.25H(56)
