DF13EA-20DP-1.25V(93)
  • Share:

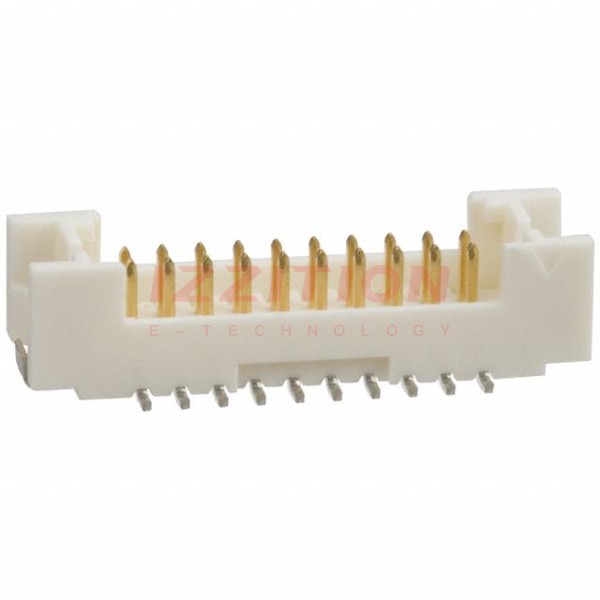

Hirose Electric Co Ltd DF13EA-20DP-1.25V(93)

Manufacturer No:
DF13EA-20DP-1.25V(93)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
DF13EA-20DP-1.25V(93) Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 20POS 1.25MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.049" (1.25mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.049" (1.25mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.094" (2.40mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.189" (4.80mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:Tin-Copper
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Solder Retention
Operating Temperature:-35°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):1A
Voltage Rating:150V
0 Remaining View Similar

In Stock

-
428

Please send RFQ , we will respond immediately.
