Hirose Electric Co Ltd-DF13B-8P-1.25V(50) - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Part Number	DF13B-8P-1.25V(50)	DF13B-8P-1.25V(51)	DF13B-9P-1.25V(50)	DF13C-8P-1.25V(50)	DF13B-2P-1.25V(50)	DF13B-3P-1.25V(50)	DF13B-4P-1.25V(50)	DF13B-5P-1.25V(50)	DF13B-6P-1.25V(50)	DF13B-7P-1.25V(50)	DF13B-8P-1.25V(20)
Manufacturer	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd
Product Status	Obsolete	Active	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)
Number of Positions	8	8	9	8	2	3	4	5	6	7	8
Number of Rows	1	1	1	1	1	1	1	1	1	1	1
Row Spacing - Mating	-	-	-	-	-	-	-	-	-	-	-
Number of Positions Loaded	All	All	All	All	All	All	All	All	All	All	All
Style	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock
Contact Length - Mating	-	-	-	-	-	-	-	-	-	-	-
Contact Length - Post	-	-	-	-	-	-	-	-	-	-	-
Overall Contact Length	-	-	-	-	-	-	-	-	-	-	-
Insulation Height	0.189" (4.80mm)	0.189" (4.80mm)	0.189" (4.80mm)	0.189" (4.80mm)	0.189" (4.80mm)	0.189" (4.80mm)	0.189" (4.80mm)	0.189" (4.80mm)	0.189" (4.80mm)	0.189" (4.80mm)	0.189" (4.80mm)
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Tin
Contact Finish Thickness - Mating	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	-
Contact Finish - Post	-	-	-	-	-	-	-	-	-	-	Tin
Contact Material	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Features	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention	Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention	Board Guide, Solder Retention
Operating Temperature	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C	-35°C ~ 85°C
Ingress Protection	-	-	-	-	-	-	-	-	-	-	-
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Beige	Beige	Beige	Beige	Beige	Beige	Beige	Beige	Beige	Beige	Beige
Current Rating (Amps)	1A	1A	1A	1A	1A	1A	1A	1A	1A	1A	1A
Voltage Rating	150V	150V	150V	150V	150V	150V	150V	150V	150V	150V	150V

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.049" (1.25mm)
Number of Positions:	8
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 3 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.189" (4.80mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	8.00µin (0.203µm)
Contact Finish - Post:	-
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	Board Guide, Solder Retention
Operating Temperature:	-35°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Beige
Current Rating (Amps):	1A
Voltage Rating:	150V

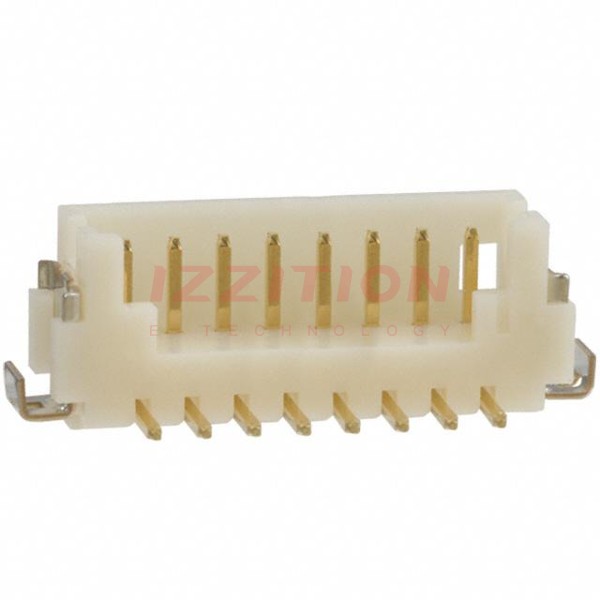

Hirose Electric Co Ltd DF13B-8P-1.25V(50)
