DF13-6P-1.25DS(50)
  • Share:

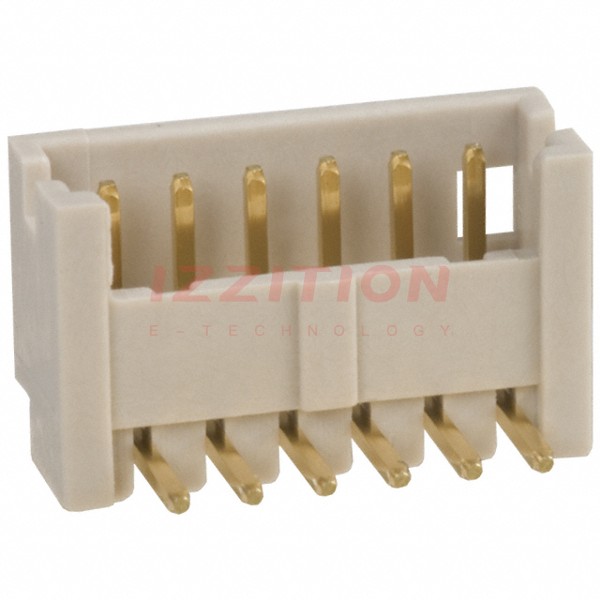

Hirose Electric Co Ltd DF13-6P-1.25DS(50)

Manufacturer No:
DF13-6P-1.25DS(50)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tube
Datasheet:
DF13-6P-1.25DS(50) Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 6POS 1.25MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.049" (1.25mm)
Number of Positions:6
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:0.091" (2.30mm)
Overall Contact Length:-
Insulation Height:0.142" (3.60mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:-
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-35°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):1A
Voltage Rating:150V
0 Remaining View Similar

In Stock

-
15

Please send RFQ , we will respond immediately.

Similar Products

Part Number DF13-6P-1.25DS(50) DF13-7P-1.25DS(50)   DF13-8P-1.25DS(50)   DF13-6P-1.25DSA(50)   DF13-9P-1.25DS(50)   DF13-2P-1.25DS(50)   DF13-3P-1.25DS(50)   DF13-4P-1.25DS(50)   DF13-5P-1.25DS(50)   DF13-6P-1.25DS(20)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Connector Type Header Header Header Header Header Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm)
Number of Positions 6 7 8 6 9 2 3 4 5 6
Number of Rows 1 1 1 1 1 1 1 1 1 1
Row Spacing - Mating - - - - - - - - - -
Number of Positions Loaded All All All All All All All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle
Termination Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder
Fastening Type Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock
Contact Length - Mating - - - - - - - - - -
Contact Length - Post 0.091" (2.30mm) 0.091" (2.30mm) 0.091" (2.30mm) 0.091" (2.30mm) 0.091" (2.30mm) 0.091" (2.30mm) 0.091" (2.30mm) 0.091" (2.30mm) 0.091" (2.30mm) 0.091" (2.30mm)
Overall Contact Length - - - - - - - - - -
Insulation Height 0.142" (3.60mm) 0.142" (3.60mm) 0.142" (3.60mm) 0.169" (4.30mm) 0.142" (3.60mm) 0.142" (3.60mm) 0.142" (3.60mm) 0.142" (3.60mm) 0.142" (3.60mm) 0.142" (3.60mm)
Contact Shape Square Square Square Square Square Square Square Square Square Square
Contact Finish - Mating Gold Gold Gold Gold Gold Gold Gold Gold Gold Tin
Contact Finish Thickness - Mating 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 39.4µin (1.00µm)
Contact Finish - Post - - - - - - - - - Tin
Contact Material Brass Brass Brass Brass Brass Brass Brass Brass Brass Brass
Insulation Material Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon
Features - - - - - - - - - -
Operating Temperature -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C
Ingress Protection - - - - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Beige Beige Beige Beige Beige Beige Beige Beige Beige Beige
Current Rating (Amps) 1A 1A 1A 1A 1A 1A 1A 1A 1A 1A
Voltage Rating 150V 150V 150V 150V 150V 150V 150V 150V 150V 150V
