DF13-40DP-1.25V(55)
  • Share:

Hirose Electric Co Ltd DF13-40DP-1.25V(55)

Manufacturer No:
DF13-40DP-1.25V(55)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tube
Datasheet:
DF13-40DP-1.25V(55) Datasheet
ECAD Model:
-
Description:

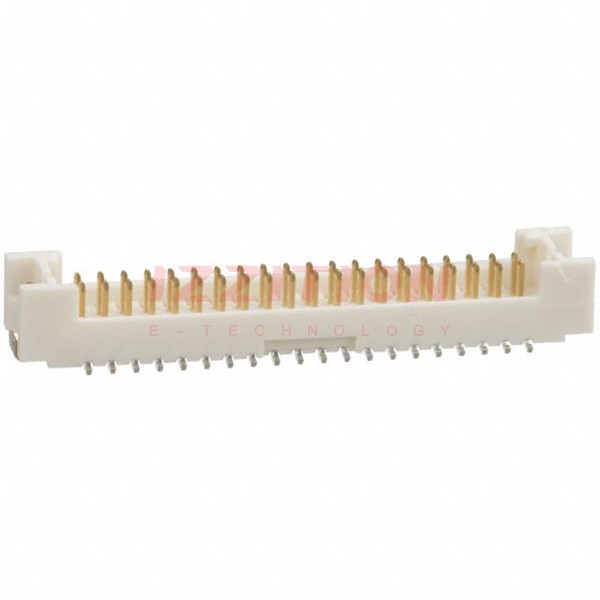

CONN HEADER SMD 40POS 1.25MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.049" (1.25mm)
Number of Positions:40
Number of Rows:2
Row Spacing - Mating:0.049" (1.25mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.094" (2.40mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.189" (4.80mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:Tin-Copper
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Board Guide, Solder Retention
Operating Temperature:-35°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):1A
Voltage Rating:150V
0 Remaining View Similar

In Stock

-
356

Please send RFQ , we will respond immediately.

Similar Products

Part Number DF13-40DP-1.25V(55) DF13-20DP-1.25V(55)   DF13-30DP-1.25V(55)   DF13-40DP-1.25V(50)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Discontinued at Digi-Key Discontinued at Digi-Key Discontinued at Digi-Key Obsolete
Connector Type Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm)
Number of Positions 40 20 30 40
Number of Rows 2 2 2 2
Row Spacing - Mating 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm)
Number of Positions Loaded All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Termination Solder Solder Solder Solder
Fastening Type Detent Lock Detent Lock Detent Lock Detent Lock
Contact Length - Mating 0.094" (2.40mm) 0.094" (2.40mm) 0.094" (2.40mm) -
Contact Length - Post - - - -
Overall Contact Length - - - -
Insulation Height 0.189" (4.80mm) 0.189" (4.80mm) 0.189" (4.80mm) 0.189" (4.80mm)
Contact Shape Square Square Square Square
Contact Finish - Mating Gold Gold Gold Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm)
Contact Finish - Post Tin-Copper Tin-Copper Tin-Copper -
Contact Material Brass Brass Brass Brass
Insulation Material Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon
Features Board Guide, Solder Retention Board Guide, Solder Retention Board Guide, Solder Retention Board Guide, Solder Retention
Operating Temperature -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C -35°C ~ 85°C
Ingress Protection - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Beige Beige Beige Beige
Current Rating (Amps) 1A 1A 1A 1A
Voltage Rating 150V 150V 150V 150V
