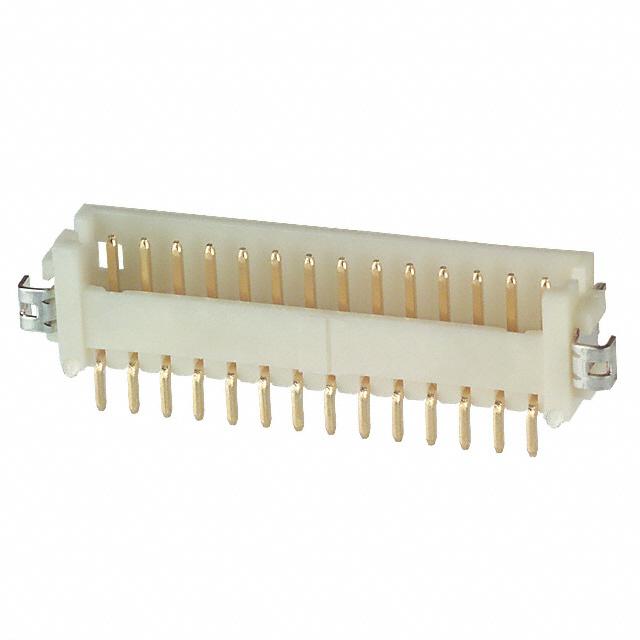

| Part Number | DF13-14P-1.25H(50) | DF13-15P-1.25H(50) | DF13-14P-1.25V(50) | DF13-4P-1.25H(50) | DF13-14P-1.25H(51) | DF13-10P-1.25H(50) | DF13-11P-1.25H(50) | DF13-12P-1.25H(50) | DF13-14P-1.25H(20) |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Last Time Buy | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Header | Header | Header | Header | Header | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) |
| Number of Positions | 14 | 15 | 14 | 4 | 14 | 10 | 11 | 12 | 14 |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - | - | - | - | - | - | - |
| Number of Positions Loaded | All | All | All | All | All | All | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 3 Wall |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock |
| Contact Length - Mating | - | - | - | - | - | - | - | - | - |
| Contact Length - Post | - | - | - | - | - | - | - | - | - |
| Overall Contact Length | - | - | - | - | - | - | - | - | - |
| Insulation Height | 0.142" (3.60mm) | 0.142" (3.60mm) | 0.189" (4.80mm) | 0.142" (3.60mm) | 0.142" (3.60mm) | 0.142" (3.60mm) | 0.142" (3.60mm) | 0.142" (3.60mm) | 0.142" (3.60mm) |
| Contact Shape | Square | Square | Square | Square | Square | Square | Square | Square | Square |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Tin |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 39.4µin (1.00µm) |
| Contact Finish - Post | - | - | - | - | - | - | - | - | Tin |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Features | Board Guide, Solder Retention | Board Guide, Solder Retention | Board Guide, Solder Retention | Board Guide, Solder Retention | Board Guide, Solder Retention | Board Guide, Solder Retention | Board Guide, Solder Retention | Board Guide, Solder Retention | Board Guide, Solder Retention |
| Operating Temperature | -35°C ~ 85°C | -35°C ~ 85°C | -35°C ~ 85°C | -35°C ~ 85°C | -35°C ~ 85°C | -35°C ~ 85°C | -35°C ~ 85°C | -35°C ~ 85°C | -35°C ~ 85°C |
| Ingress Protection | - | - | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Beige | Beige | Beige | Beige | Beige | Beige | Beige | Beige | Beige |
| Current Rating (Amps) | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A |
| Voltage Rating | 150V | 150V | 150V | 150V | 150V | 150V | 150V | 150V | 150V |
