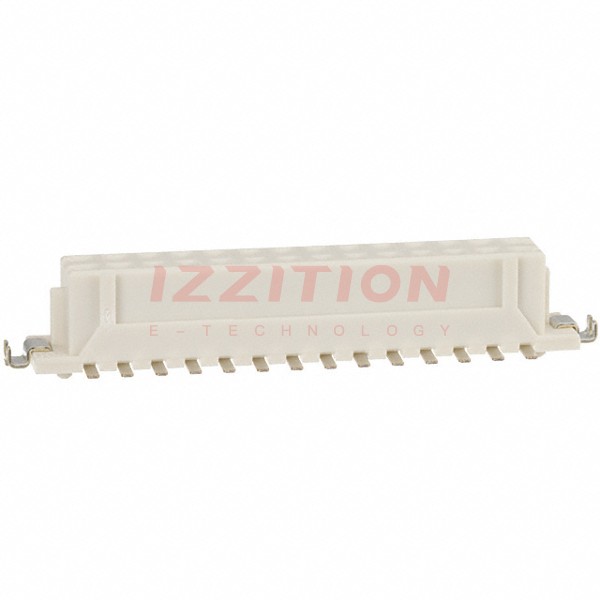

Hirose Electric Co Ltd DF11Z-28DS-2V(20)

Manufacturer No:
DF11Z-28DS-2V(20)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tube
Datasheet:
DF11Z-28DS-2V(20) Datasheet
ECAD Model:
-
Description:
CONN RCPT 28POS 0.079 TIN SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:28
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Friction Lock
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Insulation Color:Beige
Insulation Height:0.234" (5.95mm)
Contact Length - Post:-
Operating Temperature:-30°C ~ 85°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:7.55mm, 8.2mm
Ingress Protection:-
Features:Board Guide, Solder Retention
Current Rating (Amps):2A
Voltage Rating:250V
